Poynting A-OMNI-0914-V1-01 5G/LTE Marine Antenna – White
Overview
The OMNI-914 is a high gain ultra-wideband antenna that covers all current LTE/5G frequency bands with excellent balanced gain
covers all frequencies from 617 to 4200 MHz. The antenna offers 4×4 MIMO capability thanks to its vertically separated beam elements, which are all located in one
a single housing. The antenna design combines four omnidirectional, high gain antennas, providing superior pattern control.
over the entire frequency range. This unique combination makes the OMNI-914 a true omnidirectional 4×4 MIMO antenna suitable for maritime and coastal applications. The antenna has IP68 protection against the ingress of dust and water, making it ideal for most severe storms at sea. The housing is also fully protected against salt water, so that it can also be used in highly corrosive environments thanks to the fiberglass housing material. The OMNI914 guarantees signal reception almost everywhere and can be used in all parts of the world. The ultra-wideband performance makes the antenna future-proof, as it covers both the LTE band 71 (617 to 698 MHz) and the CBRS bands from 3400 to 4200 MHz for use in Germany.
Properties
- Powerful 4×4 MIMO omnidirectional antenna
- Broadband antenna for LTE/5G (617 to 4200 MHz)
- Including band 71 (617 to 698 MHz) and 3.5 GHz 5G band
- Robust and weatherproof housing with protection class IP 68
- UV and salt water resistant housing
Areas of application

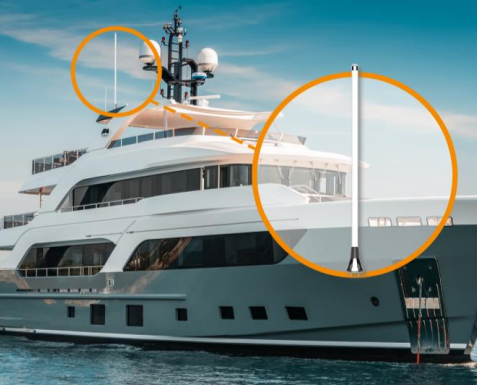

- Marine applications: Super yachts / boats / ferries
- Improved LTE/4G and 5G reception
- Increased reliability of system transmission
- High-end router applications for industry
- Industrial and commercial LTE/5G use
- LTE/5G data distribution in agriculture and livestock farming
Technical data
- Frequency bands:
- 617 – 960 MHz
- 1427 – 1517 MHz
- 1710 – 2700 MHz
- 3400 – 4200 MHz
- Reinforcement (Max):
- 6 dBi @ 617 – 960 MHz
- 5.5 dBi at 1427 – 1517 MHz
- 8 dBi at 1710 – 2700 MHz
- 5.5 dBi @ 3400 – 4200 MHz
- Gain (mean value):
- 5 dBi @ 617 – 960 MHz
- 2 dBi @ 1427 – 1517 MHz
- 6 dBi @ 1710 – 2700 MHz
- 3.5 dBi @ 3400 – 4200 MHz
- VSWR: ≤ 2.5:1 Across 90% of the bands
- Load capacity of the power supply: 10 W
- Input impedance: 50 Ohm (nominal)
- Polarization: Linear Vertical
- Coaxial cable loss:
- 0.385 dB/m at 900 MHz
- 0.507 dB/m at 1500 MHz
- 0.565 dB/m at 1800 MHz
- 0.788 dB/m at 3000 MHz
- DC short circuit: Yes

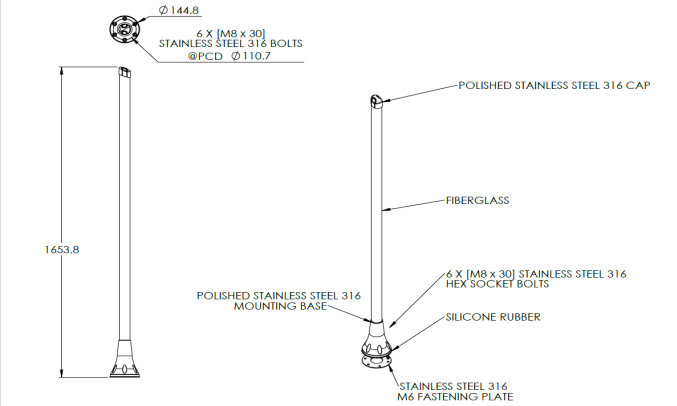

- Product dimensions 2454 mm x Ø145 mm (incl. mounting base)
- Case material: fiberglass with 316 stainless steel caps
- Color of the housing: Brilliant white
- Pantone P 179-1C
- Mounting type: pole, wall and surface mounting
- Wind resistance: <190 km/h
- Temperature range (operation): -40°C to +80°C
- Ambient conditions: Outdoor/indoor
- Type of protection/standard for water ingress: IP 68
- Salt spray: MIL-STD 810G/ASTM B117
- Relative humidity during operation: Up to 98%
- Humidity during storage: 5% to 95% – non-condensing
- Storage temperature: -40°C to +80°C
- Flammability class of the housing: UL 94-HB
- Impact resistance: IK 10
- Product safety & environment:
- Complies with CE and RoHS standards
