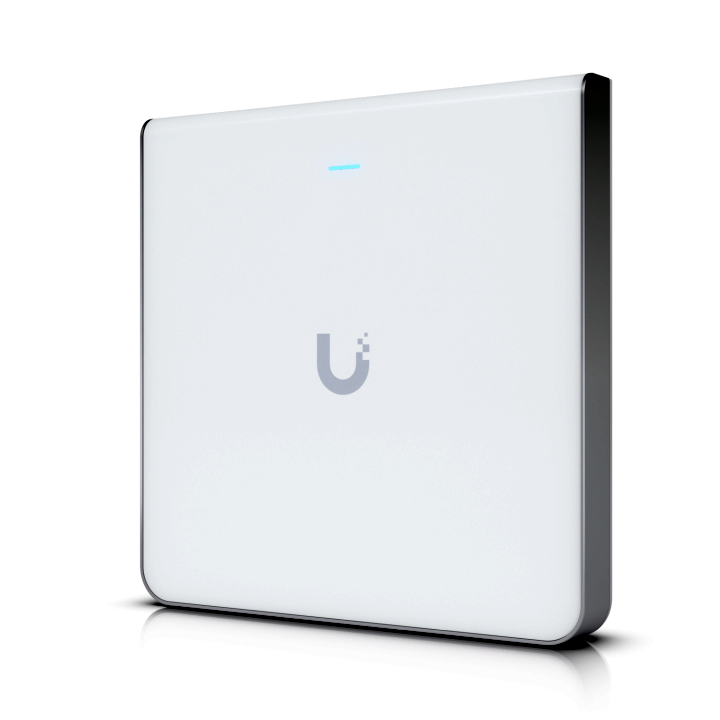

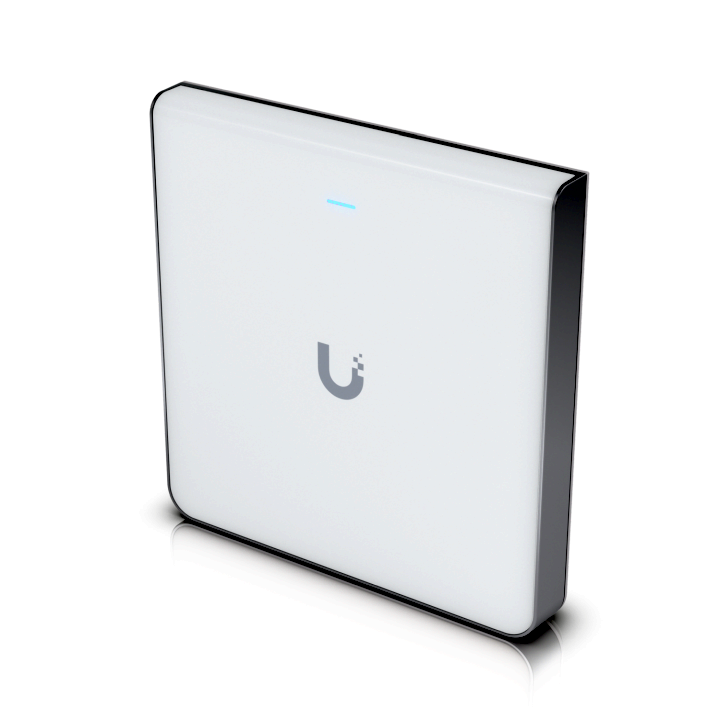

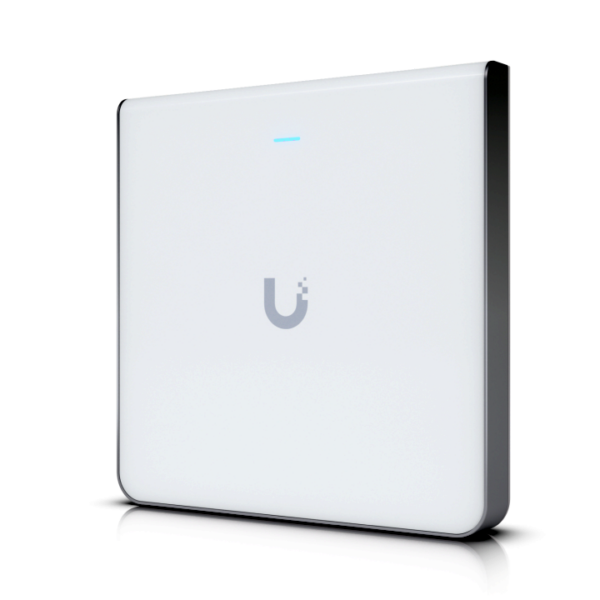

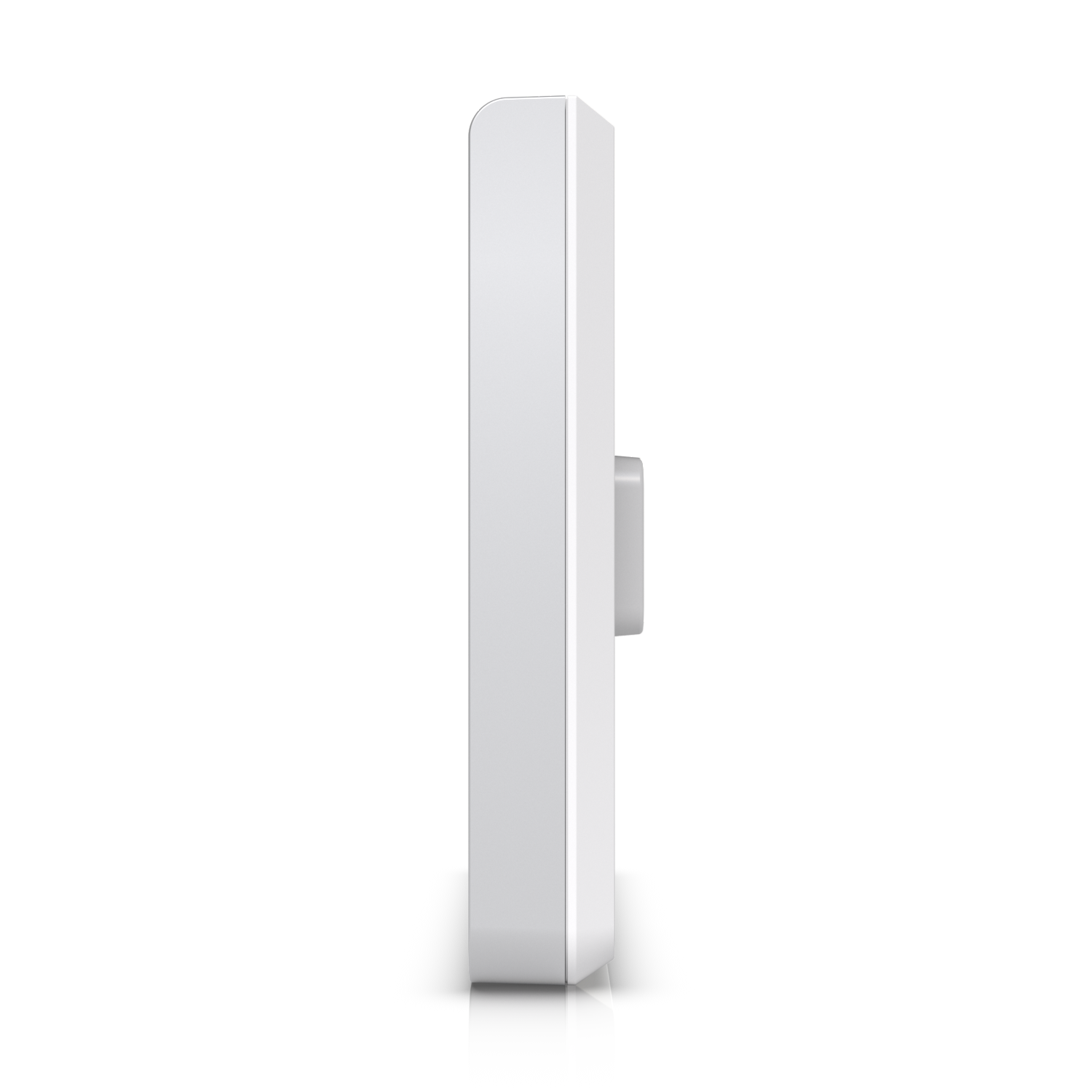

Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks.
115 m² (1,250 ft²) coverage
600+ connected devices
WiFi6E (4×4 MIMO)
Powered using PoE+/PoE++*

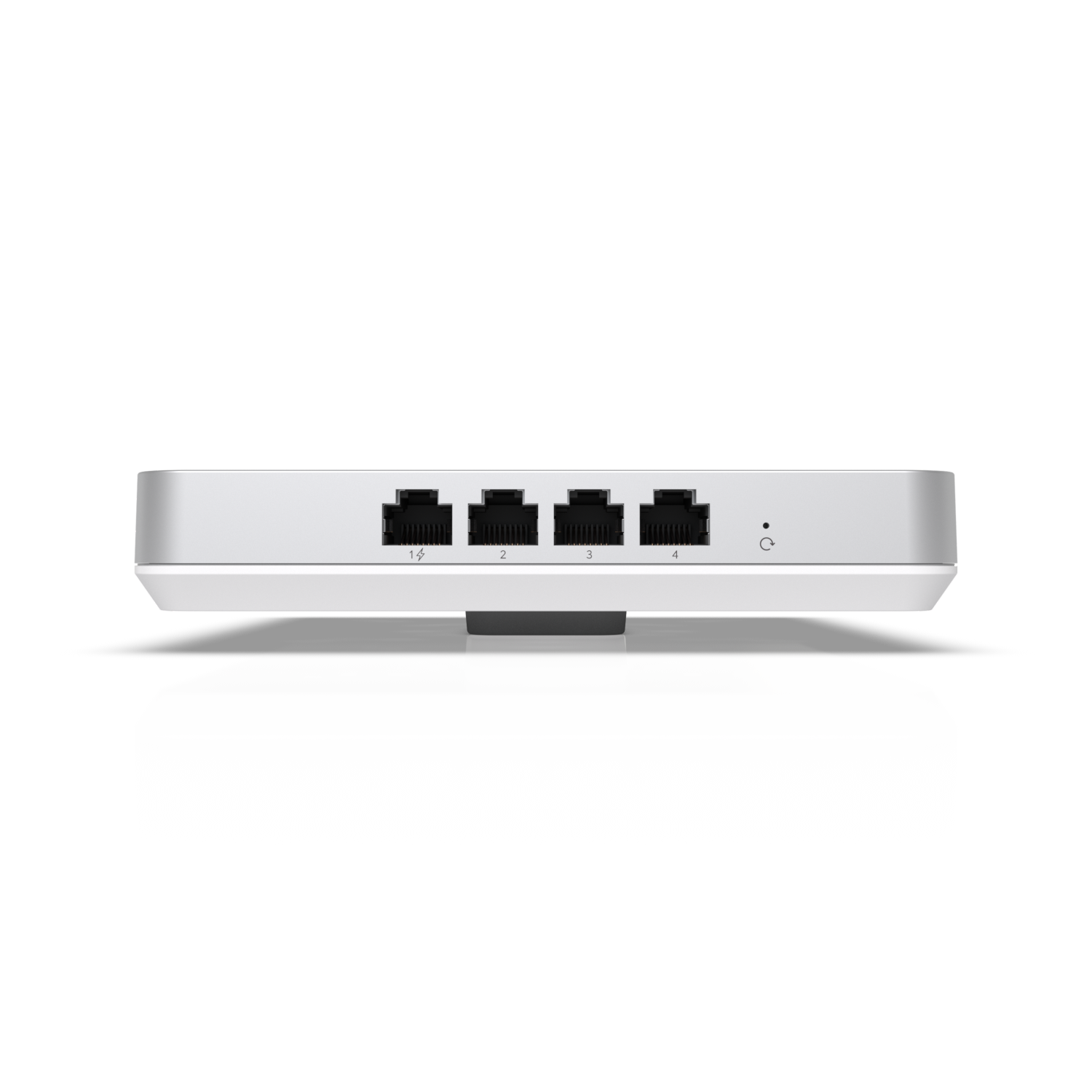

(4) GbE ports with (1) PoE output
2.5GbE uplink
*PoE++ required for the use of PoE output.
Technical Specifications
Mechanical
Dimensions
159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3″)
Weight
884 g (1.95 lb)
Enclosure materials
Polycarbonate, aluminum
Mount material
Aluminum
Hardware
Networking interface
(1) Data in: 2.5GbE RJ45 port
(4) Data out: GbE RJ45 ports
Management interface
Ethernet
Bluetooth
PoE interface
(1) PoE+ input
(1) PoE output
Power method
PoE+
PoE++ (required for PoE output)
Power supply
UniFi PoE switch
Max. power consumption
Excluding PoE output: 21W
Max. PoE wattage per port by PSE
15.4W
Supported voltage range
44—57V DC
Max. TX power
2.4 GHz
5-7 GHz
