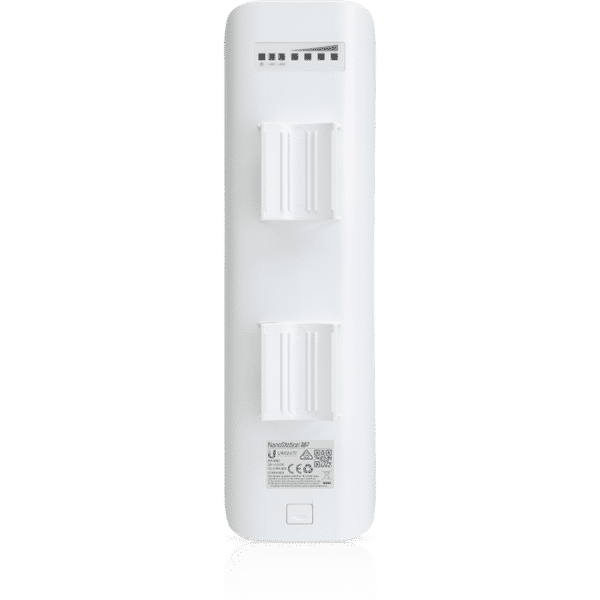

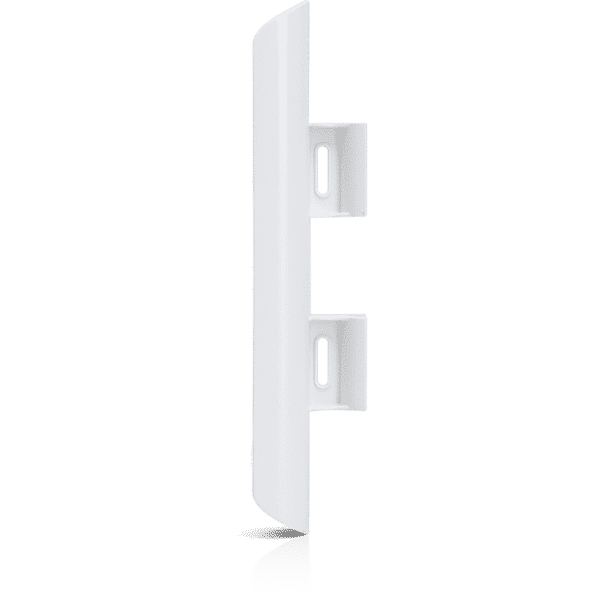

Indoor/Outdoor airMAX 2.4 GHz CPE.
2.4 GHz frequency band
Cost-effective, high-performance
Plug-and-play integration with airMAX antennas
Technical Specifications
NSM2
Dimensions
294 x 31 x 80 mm (11.57 x 1.22 x 3.15")
Weight
400 g (14.11 oz)
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole-Mount (Kit Included)
Networking Interface
(2) 10/100 Ethernet Ports
Processor Specs
Atheros MIPS 24Kc, 400 MHz
Memory
32 MB SDRAM, 8 MB Flash
Power Supply (PoE) 24V, 0.5A
24V, 0.5A
Max. Power Consumption 5.5W
8W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency
2412-2462 MHz
Gain
10.4-11.2 dBi
Frequency
2.4 GHz
Cross-pol Isolation
23 dB Minimum
Max. VSWR
1.6:1
Beamwidth
55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization
Dual Linear
RoHS Compliance
Yes
Shock & Vibration
ETSI300-019-1.4
Operating Temperature
-30 to 75° C (-22 to 167° F)
Operating
