A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.

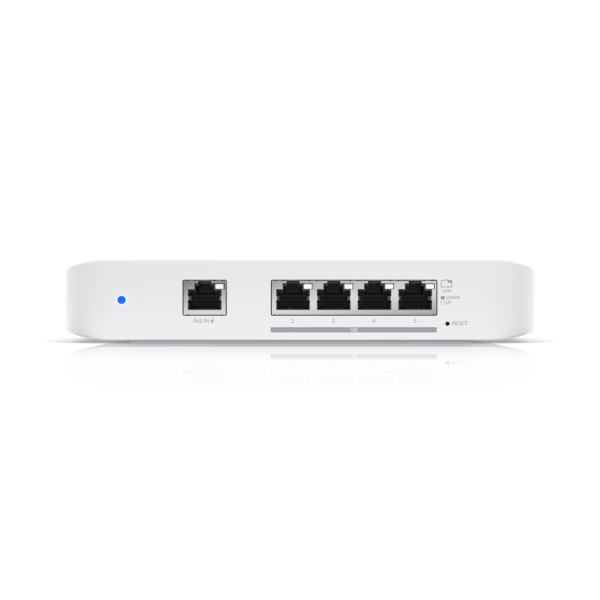

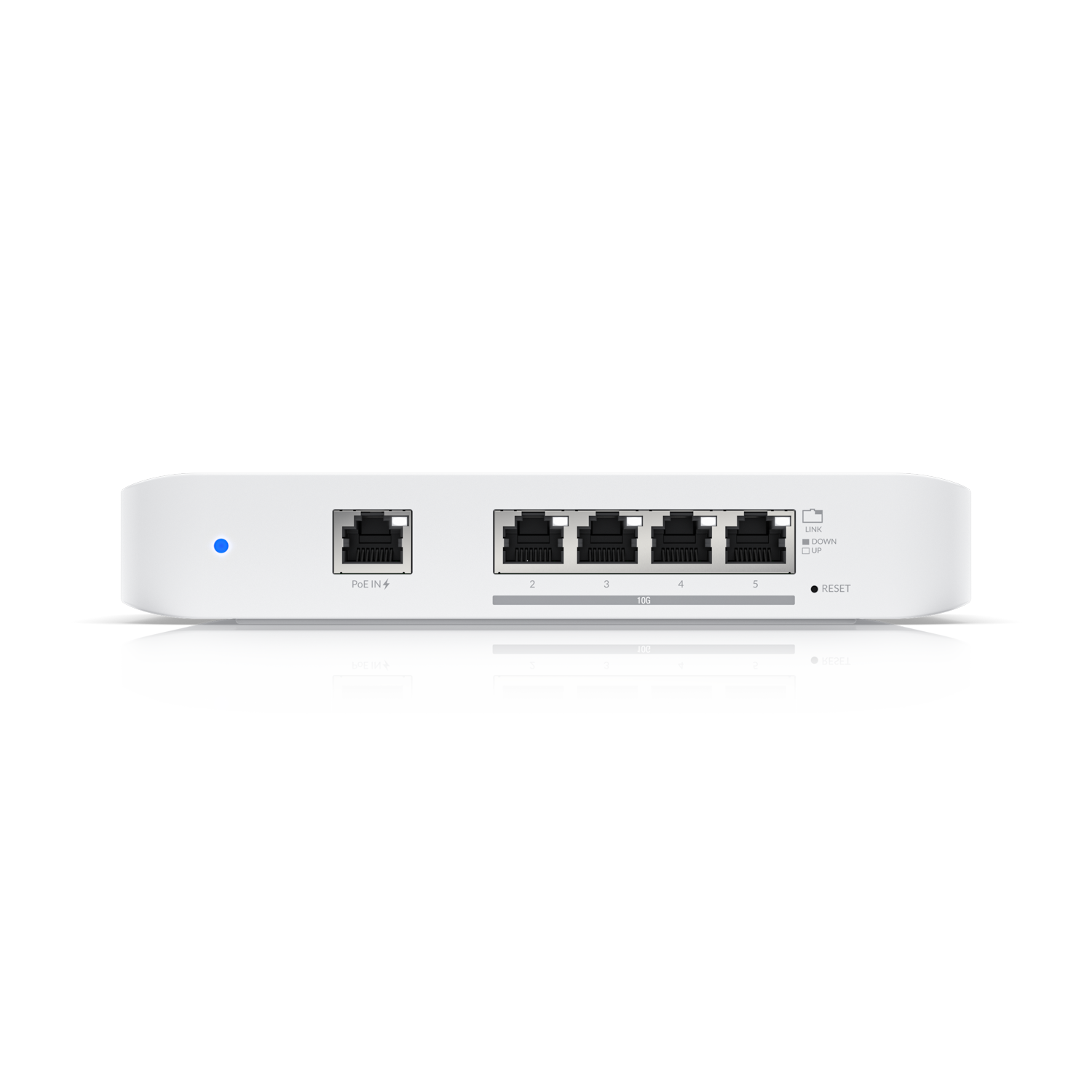

(4) 10 GbE ports
(1) GbE PoE+ input port for power
Technical Specifications
Mechanical
Dimensions
135 x 185 x 32 mm (5.3 x 7.3 x 1.3″)
Weight
1.2 kg (2.6 lb)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(1) GbE, PoE+ RJ45 port
(4) 10 GbE RJ45 ports
Total non-blocking throughput
41 Gbps
Switching capacity
82 Gbps
Forwarding rate
61.012 Mpps
Power method
(1) PoE+, 50—57V DC, 25W
(1) USB Type-C, 5V DC, 5A
Power supply
PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 😎
AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
Supported voltage range
90—264V AC (Adapter)
Max. power consumption
25W
ESD/EMP protection
Air: ± 16kV, contact: ± 12kV
Button
Factory reset
Operating temperature
-5 to 45° C (23 to 113° F)
Operating humidity
