Highly durable, easily deployable, dual-band WiFi radio with a 300+ Mbps throughput rate at 5 GHz.
Covers both 2.4 and 5 GHz bands
300+ Mbps throughput*
IP67 weatherproofing
Plug-and-play integration with airMAX antennas
*Only at 5 GHz frequency band.
Technical Specifications
Mechanical
Dimensions
190 x 46 mm (7.72 x 1.81")
Weight
213 g (7.51 oz)
Enclosure materials
Aluminum, rubber
Weatherproofing
IP67
Hardware
Networking interface
(1) GbE RJ45 port
Power method
24V assive PoE (pairs 4, 5+; 7, 8 return)
Power supply
24V DC, 0.3A (minimum)** Not included with the BulletAC-IP67.
Max. power consumption
7W
Max. TX power
22 dBm
Throughput
2.4 GHz
5 GHz
160+ Mbps
300+ Mbps

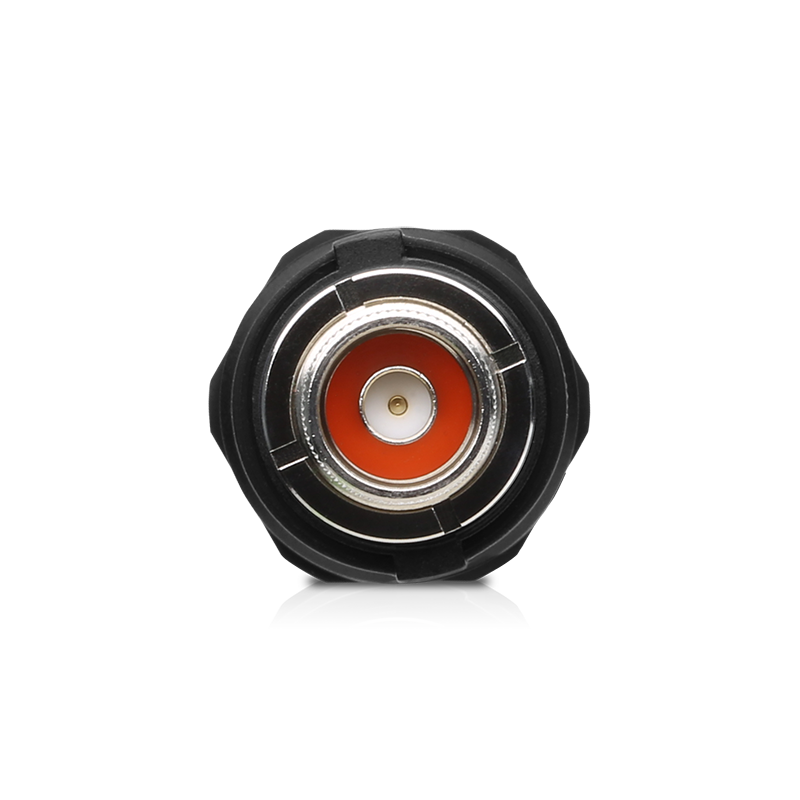

Antenna connector
N-type connector
ESD/EMP protection
Air/contact ± 24 kV
LEDs
Power, Ethernet, ?(4) signal strength
Shock and vibration
ETSI300-019-1.4
Operating temperature
-40 to 70° C (-40 to 158° F)
Operating
