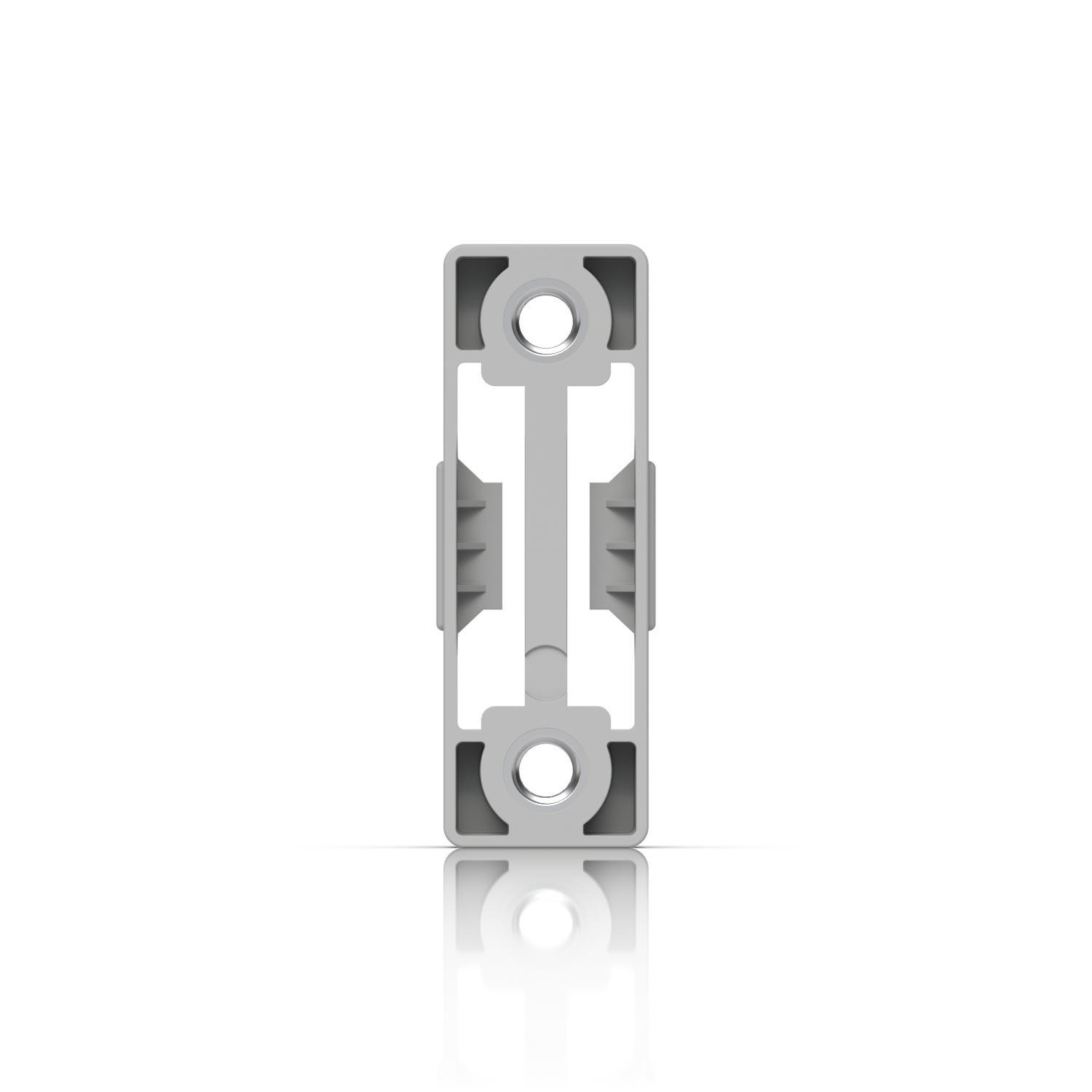

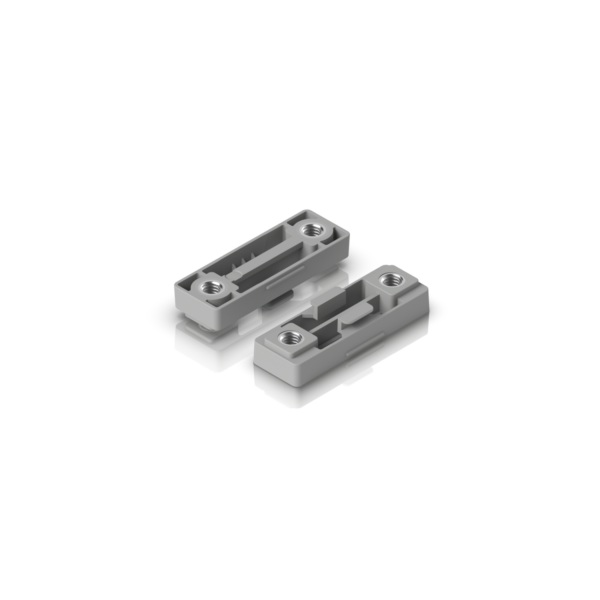

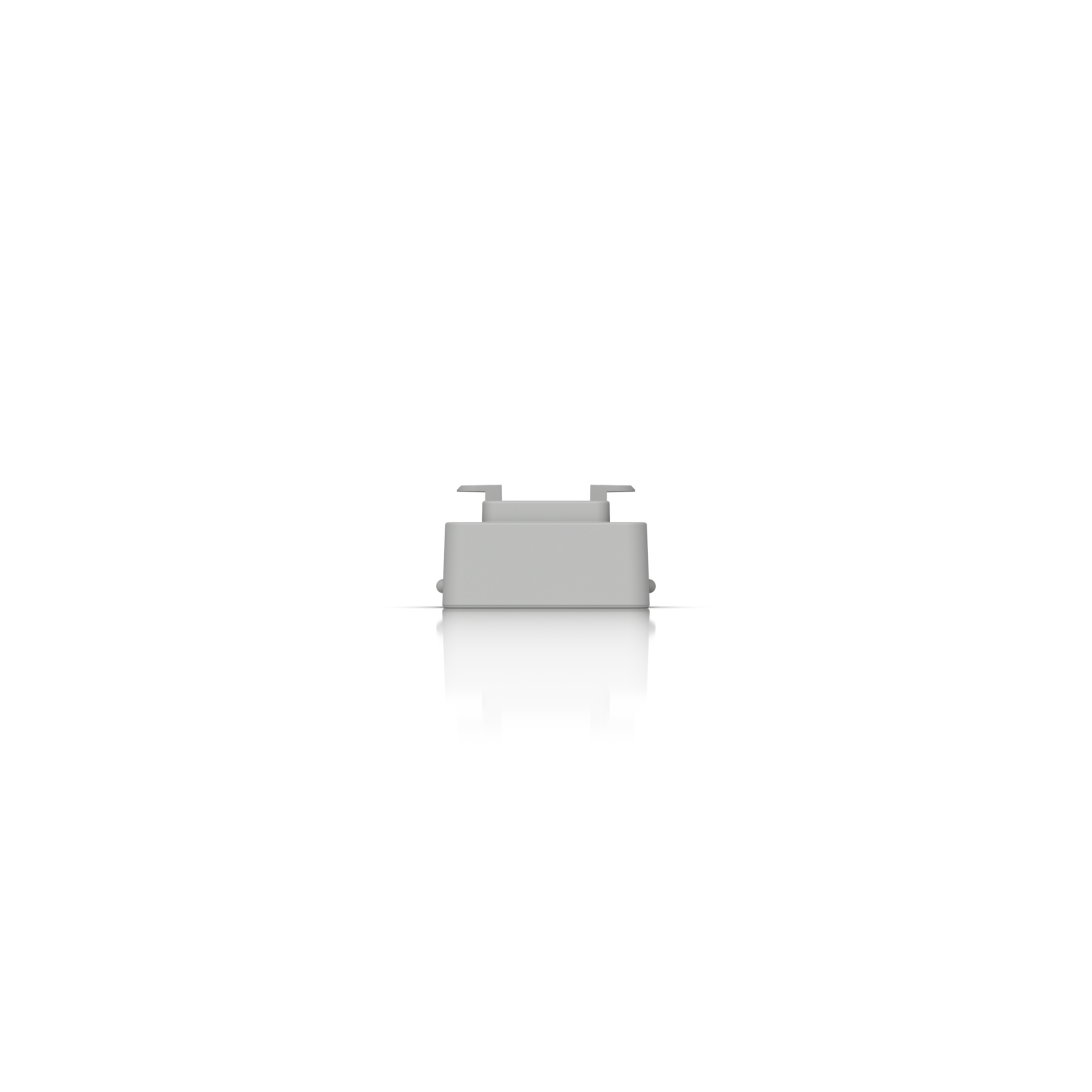

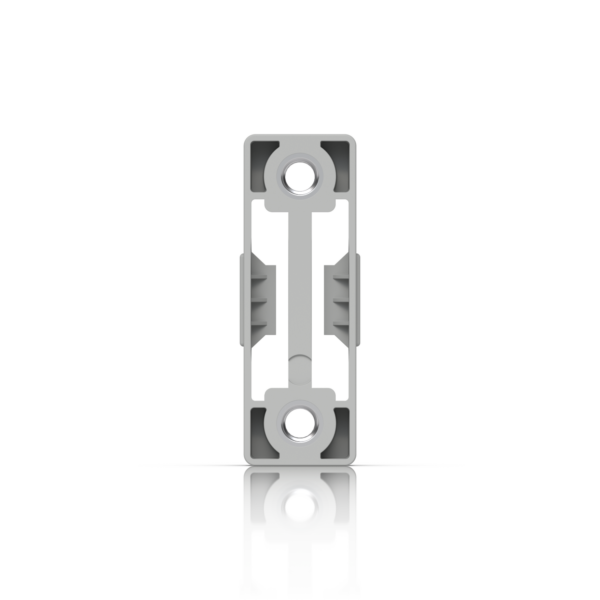

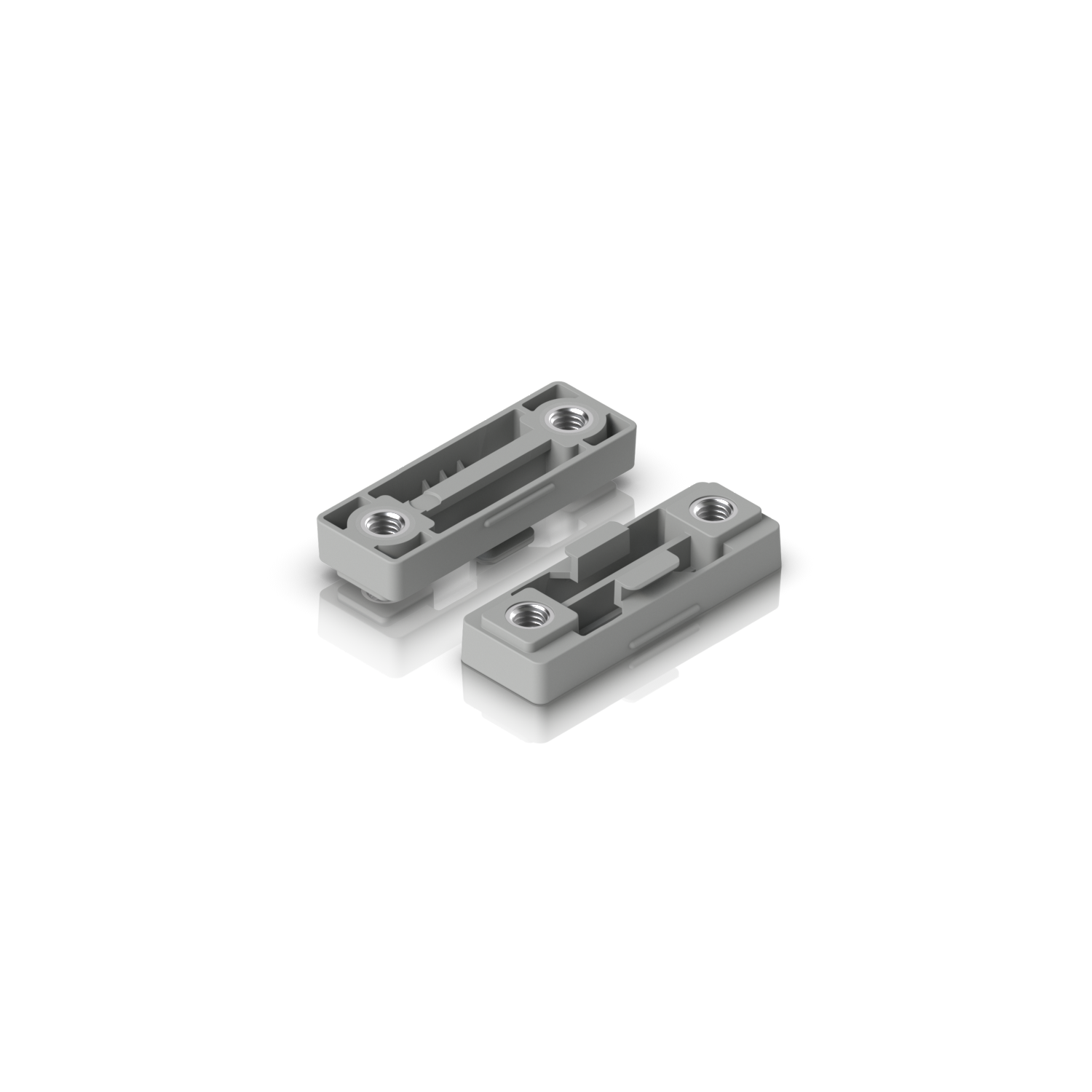

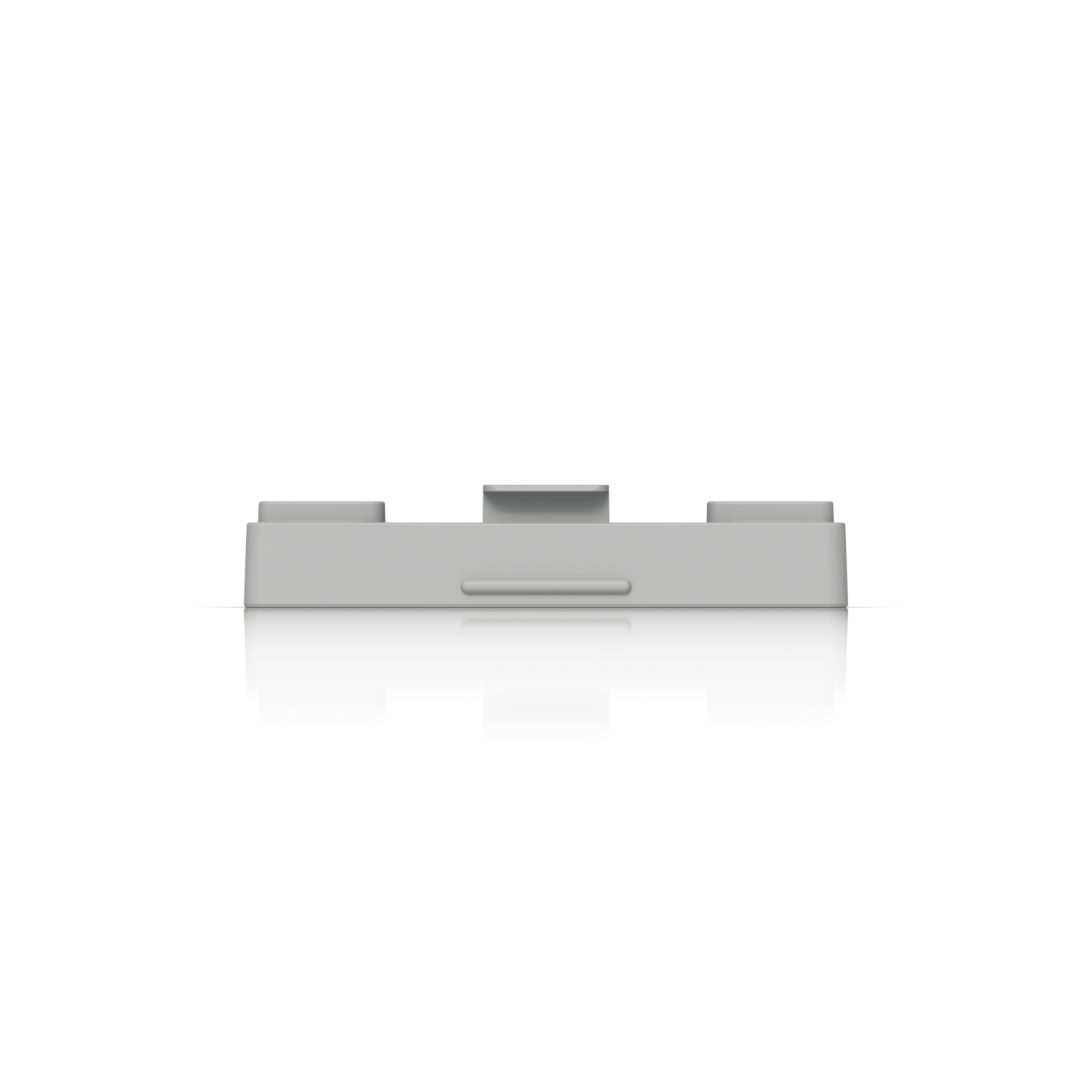

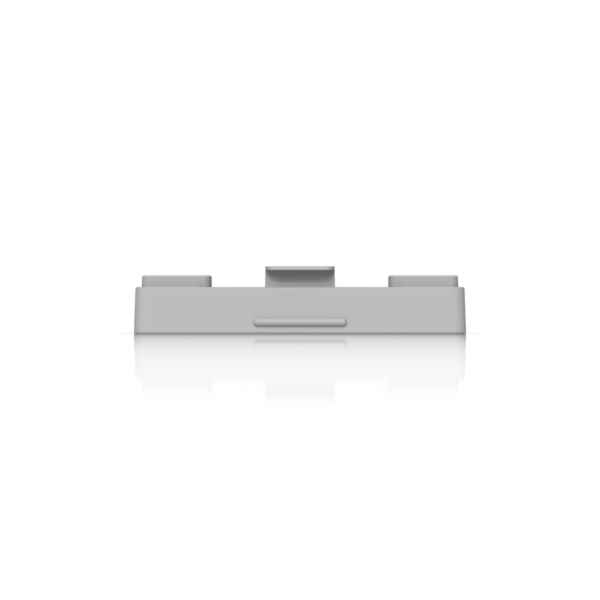

1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.
Easy installation and removal
Pair multiple inserts to mount larger devices
(20) Precision Rack Mount inserts per kit
Technical Specifications
Mechanical
Dimensions
42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34")
Weight
4 g (0.03 oz)
Rack rail thickness
Up to 2.2 mm (0.08")
Material
Thermoplastic (PA66)
Treatment
Texture
Screw
#10-32
Pack type
20-pack (for 10U installation)
