Ubiquiti RocketDish 31dBi, 5GHz, Rocket Kit, RD-5G31-AC

Supporto personalizzato
+ Servizio di installazione
+ Servizi gestiti

Ubiquiti RocketDish 31dBi, 5GHz, Rocket Kit, RD-5G31-AC

337,97  in più. IVA

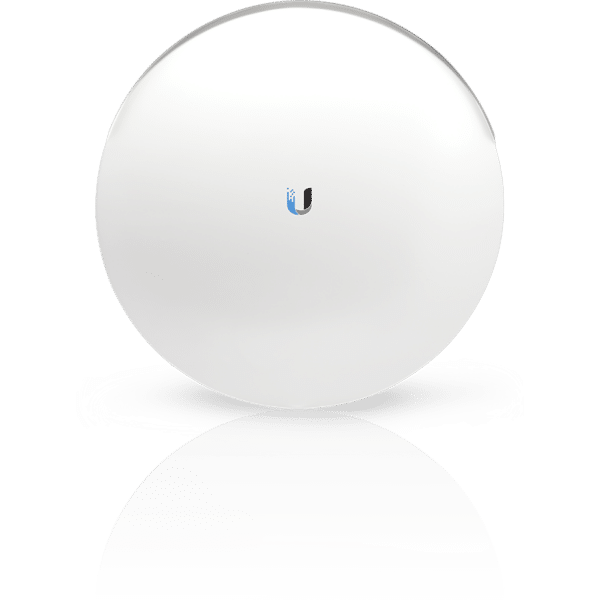

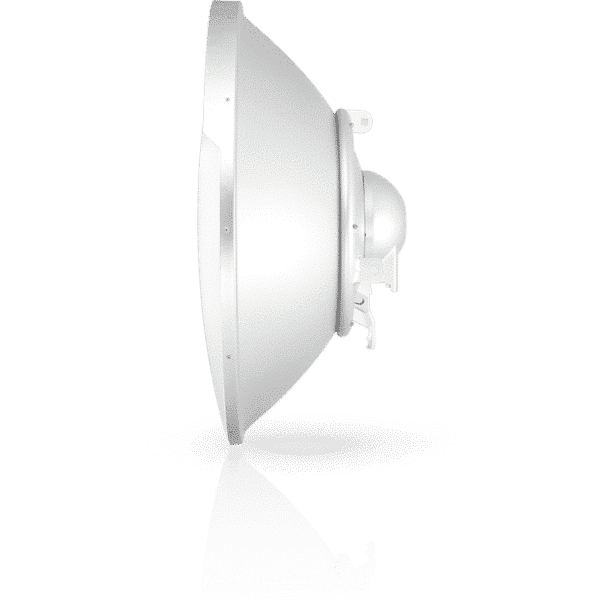

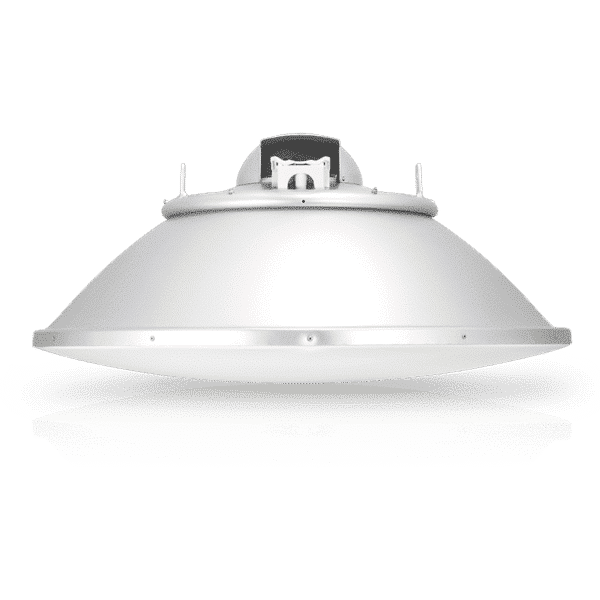

The RocketDish RD-5G31-AC is a Carrier Class 2x2 Bridge Dish Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM?s radio with the RocketDish antenna?s reach to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul. Frequency Range 5.1 - 5.8 GHz Gain 31 dBi --> Rocket M wird noch benötigt!

5 GHz, 31 dBi high-performance dish antenna.

2x2 dual-polarity performance

Robust mechanical design for outdoor application use

Included radome and metal shroud

Compatible with Rocket Prism 5AC, Rocket M5

Technical Specifications

RD-5G31-AC
Dimensions
748 x 748 x 349 mm (29.45 x 29.45 x 13.74")
Weight
With Mount: 7.6 kg (16.76 lb)
Frequency Range
5.1 - 5.8 GHz
Gain
31 dBi
Max. VSWR
1.4:1
Wind Loading
1,028 N @ 200 km/h (231 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
Polarization
Dual-Linear
Cross-pol Isolation
35 dB Min.
ETSI Specification
EN 302 326 DN2
Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included

0/5 (0 Recensioni)
Peso 13,070 kg
Dimensioni 800,000 × 800,000 × 365,000 cm
