A quick start with Access with all you need for one door with one reader.
(1) UniFi Access Door Hub

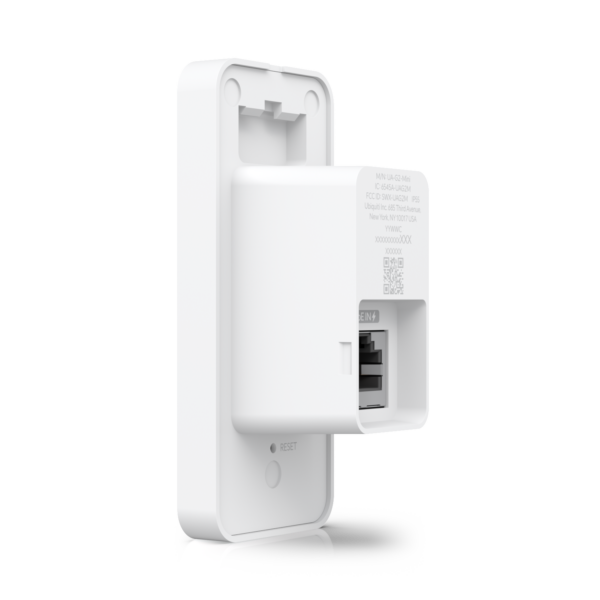

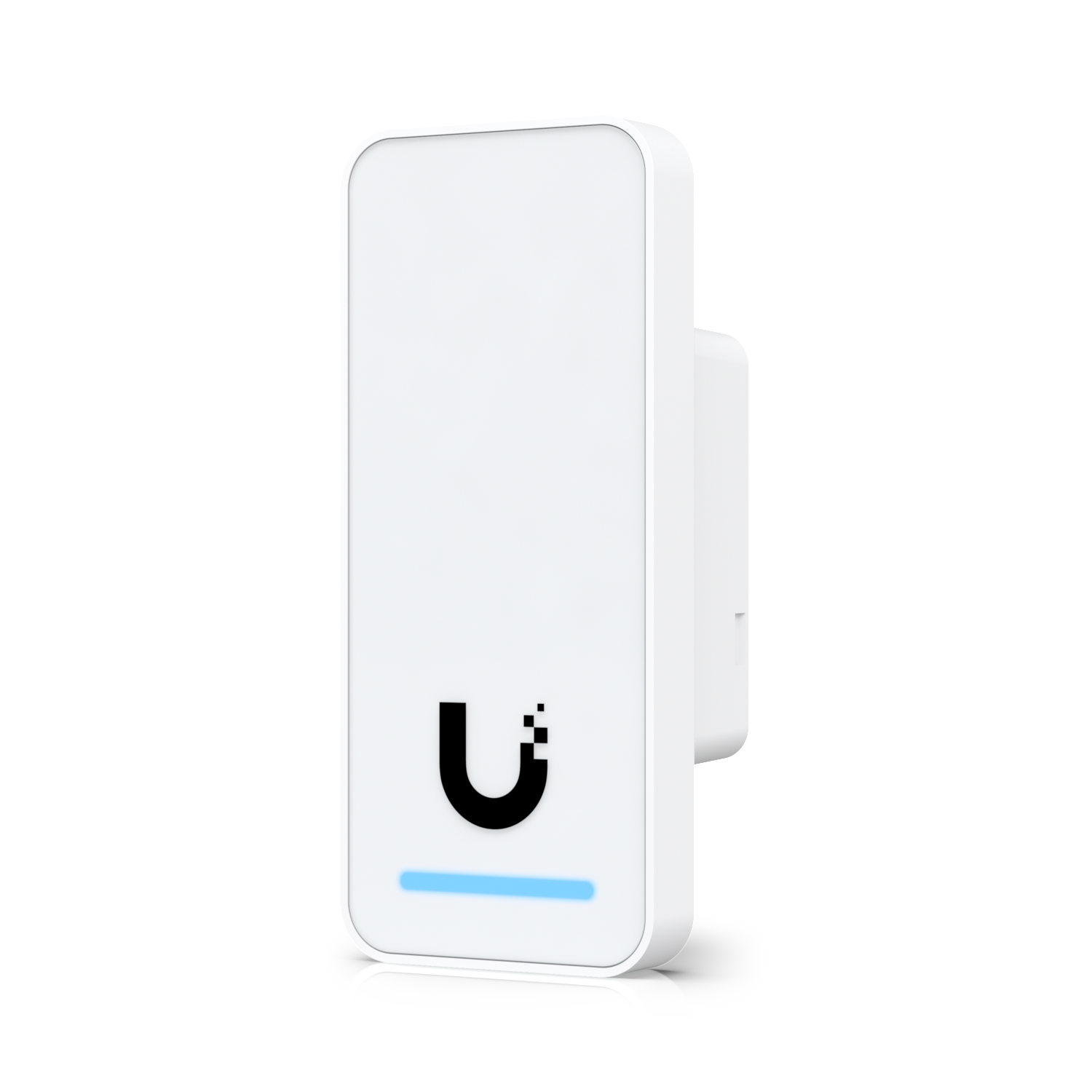

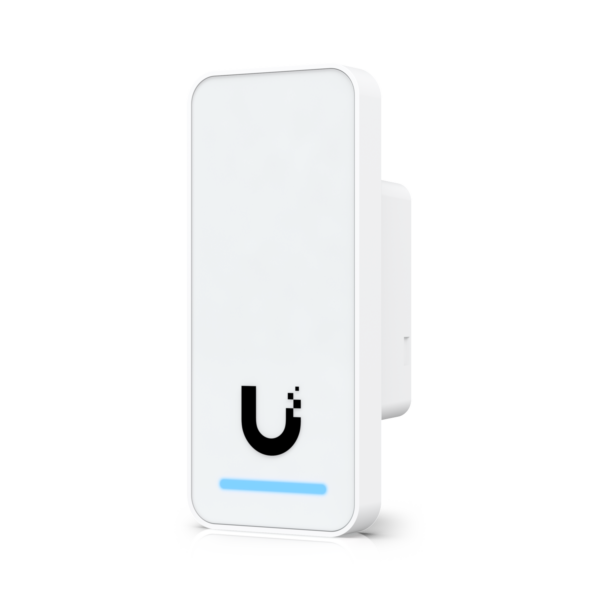

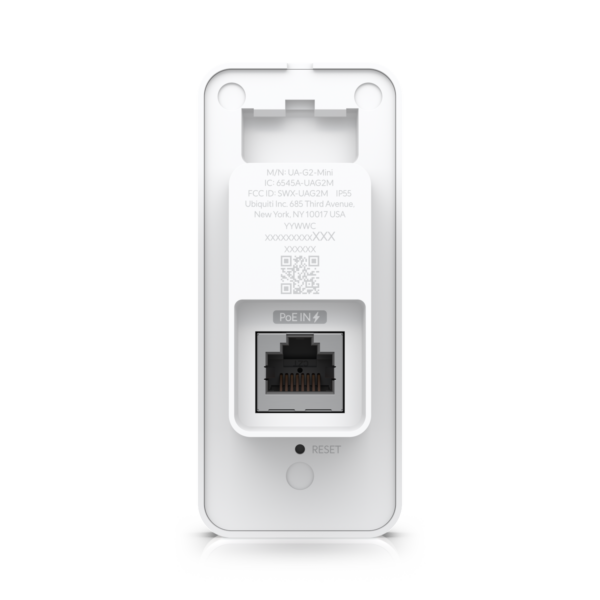

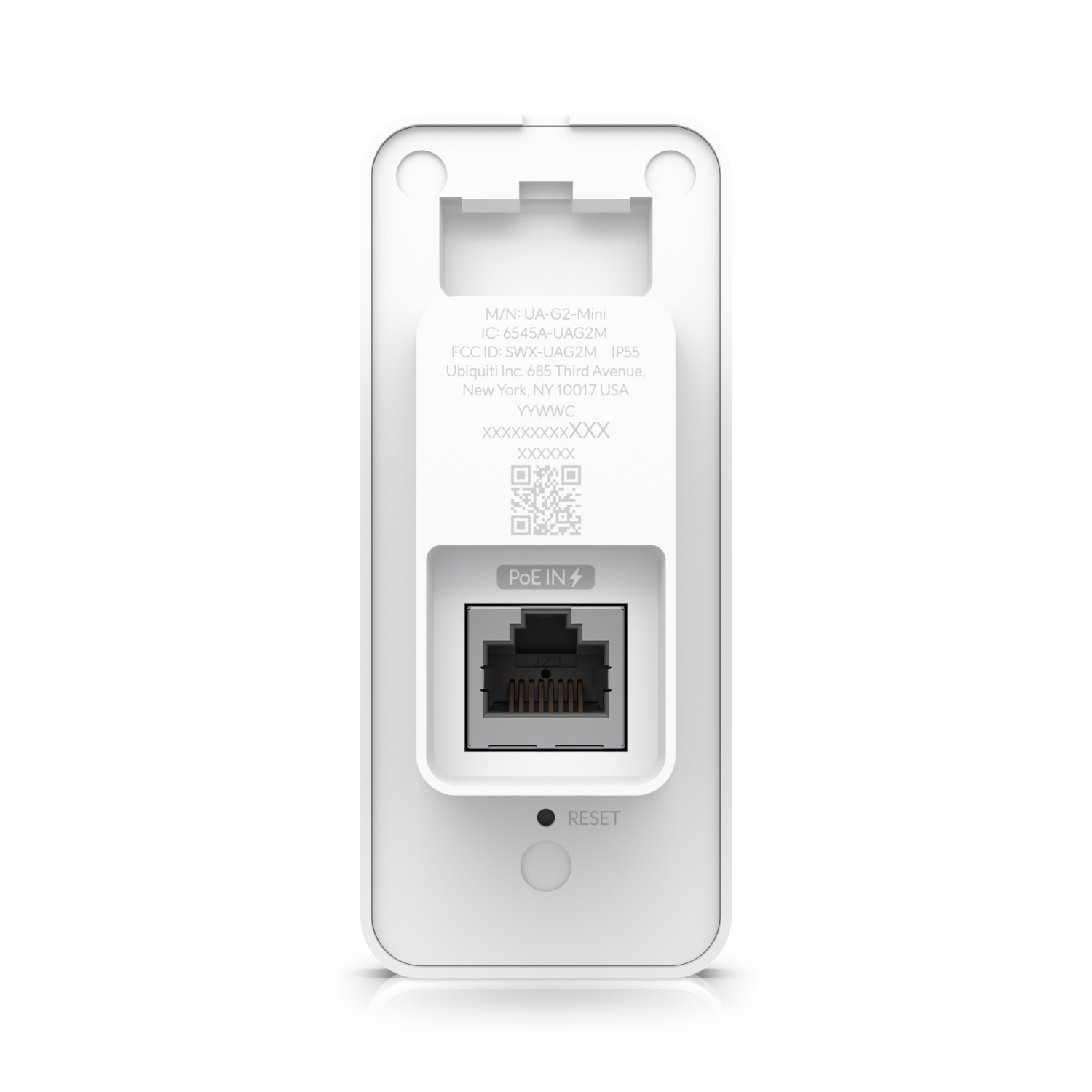

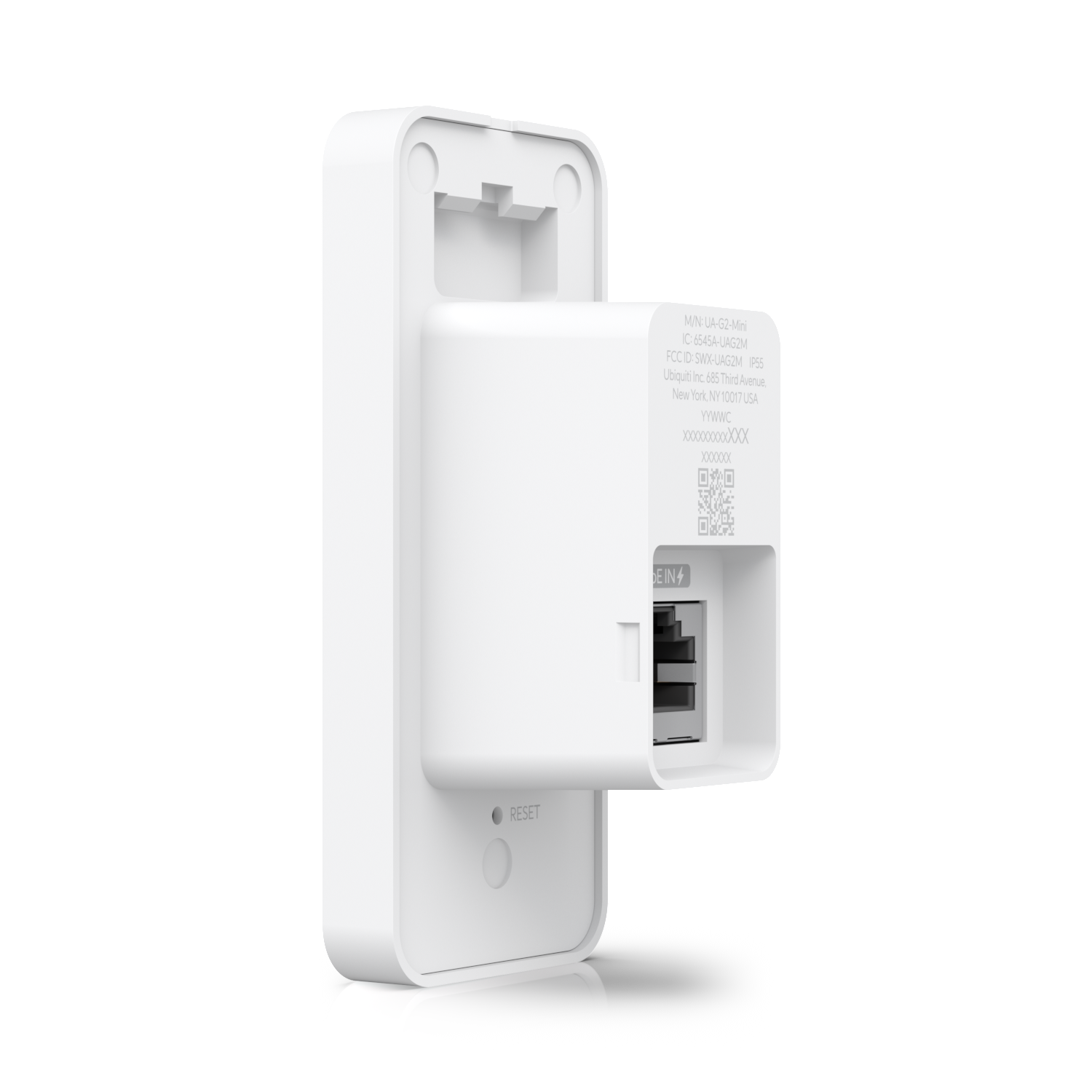

(1) Access Reader G2
(10) UniFi Access Cards
Technical Specifications

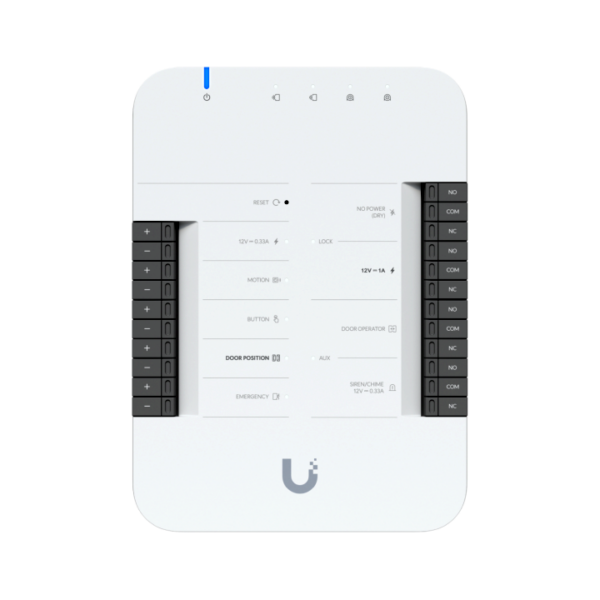

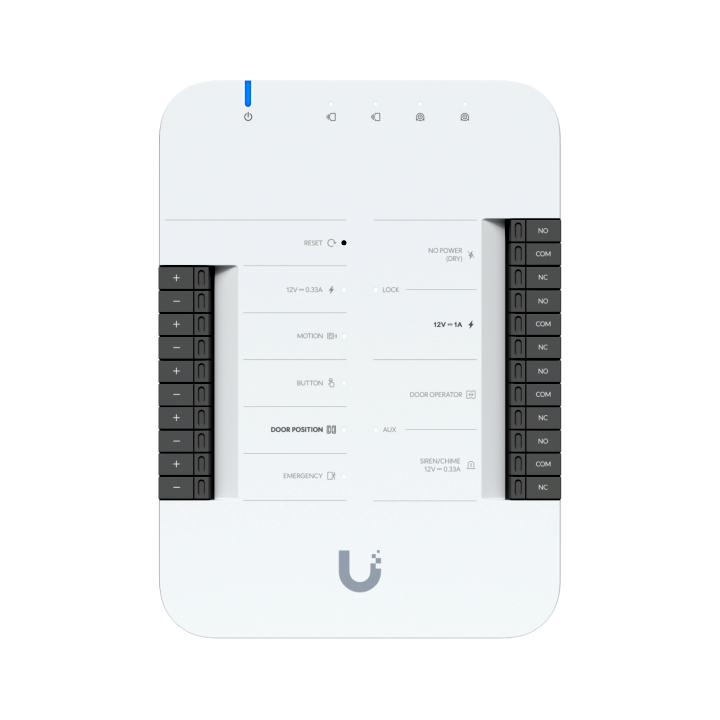

UA-Hub-Door
Mechanical
Dimensions
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)
Weight
363 g (12.8 oz)
Enclosure material
Polycarbonate
Mounting material
Polycarbonate
Hardware
Networking interface
(5) 10/100/1000 Base-T
Power method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU
Max. power consumption
Without PoE output: 30W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
PoE passthrough, (4) PoE, 50V DC, total 20W
Button
(1) Factory-reset
LEDs
System: white/blue
Output relays: white
Digital input
Request to exit/request to enter/remote release/door position sensor
Dry output relay
Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay
Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC,
