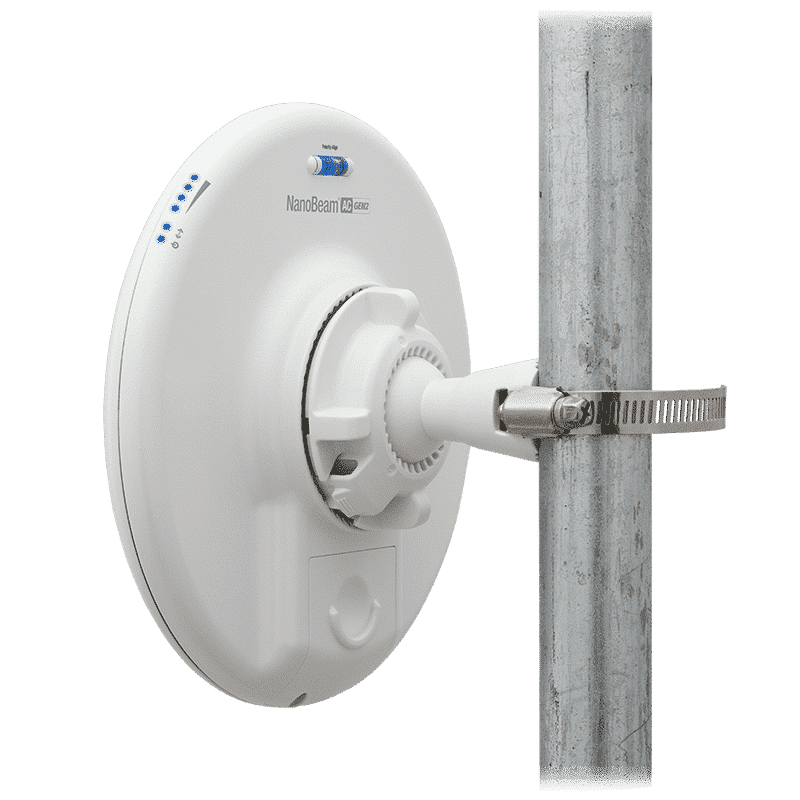

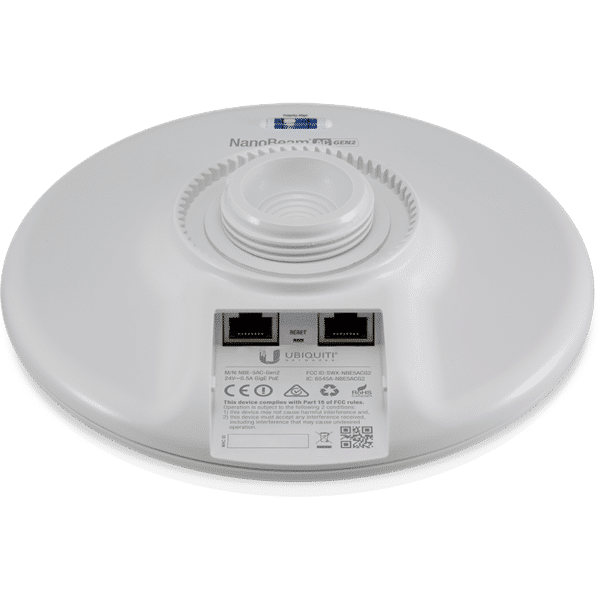

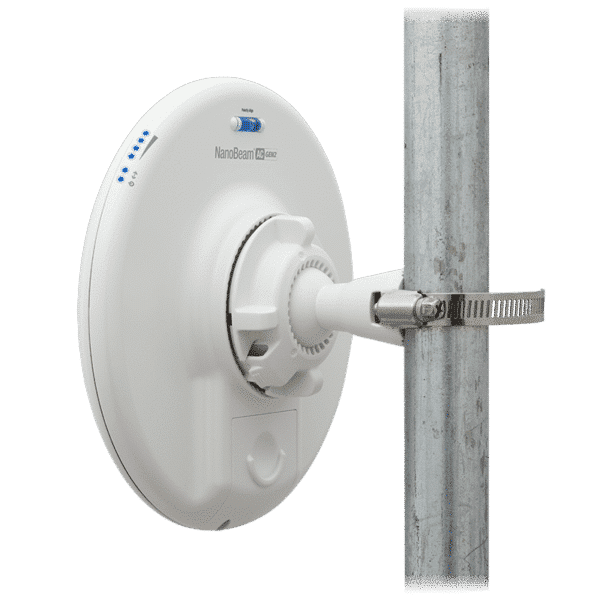

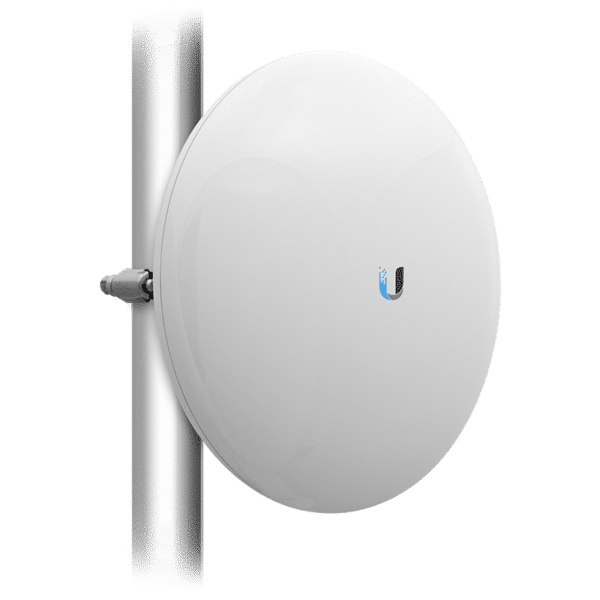

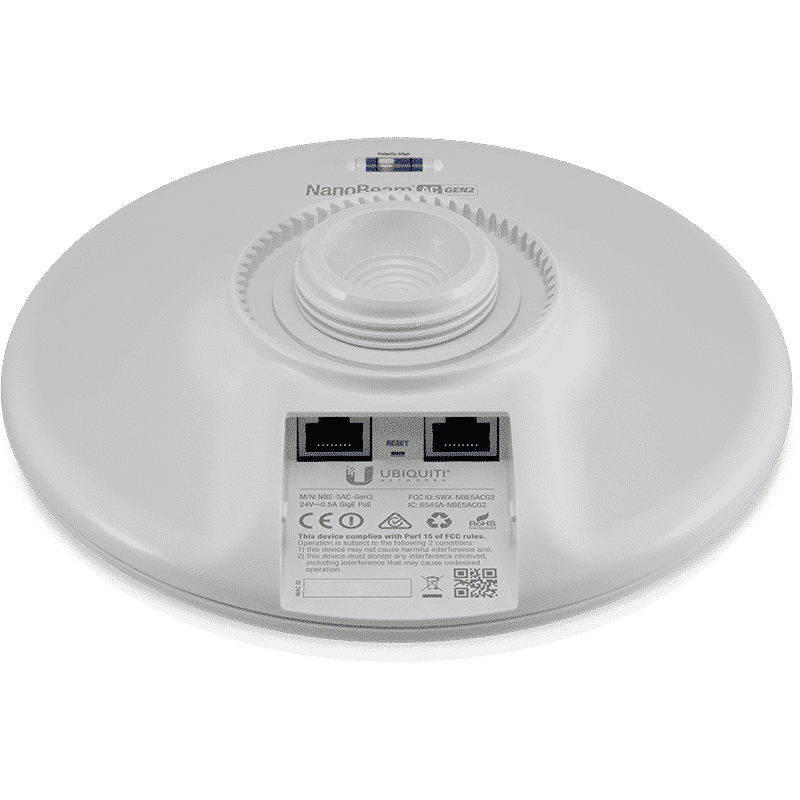

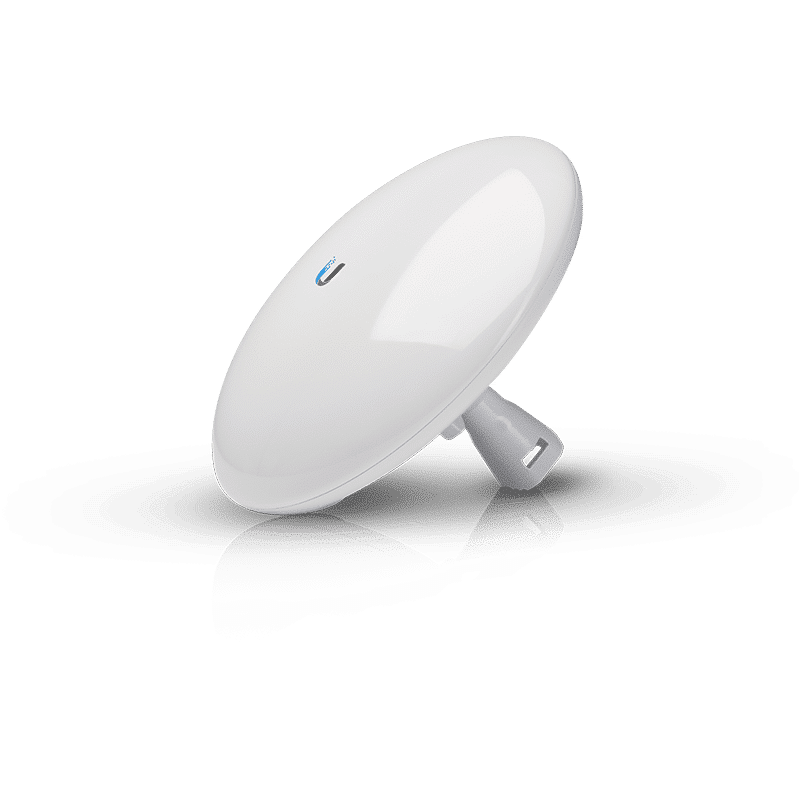

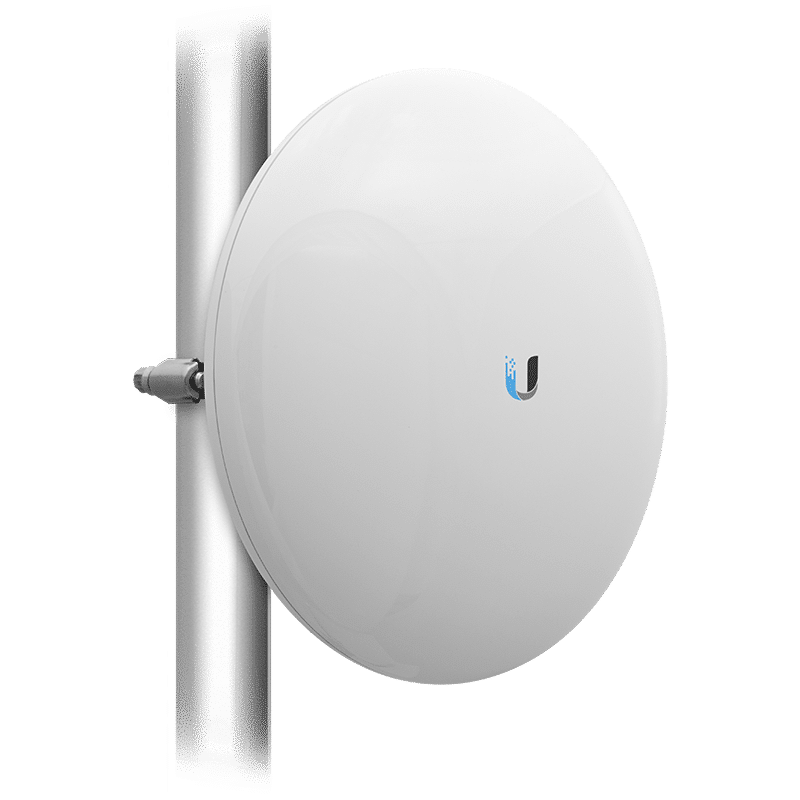

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
5 GHz, 10+ km link range
450+ Mbps throughput
Easy mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Technical Specifications
Mechanical
Dimensions
189 x 189 x 125 mm (7.44 x 7.44 x 4.92″)
Weight
530 g (1.17 lb)
Enclosure material
UV-stabilized plastic
Mounting
Pole mount kit (Included)
Wall mount (Not included)
Wind Loading
45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability
200 km/h (125 mph)
Hardware
Networking interface
(2) GbE RJ45 ports
Power method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply
24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption
8W
ESD/EMP protection
Air/contact: ± 24kV
LEDs
Power, Ethernet, (4) Signal strength
Salt fog test
IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test
IEC 68-2-6
Te
