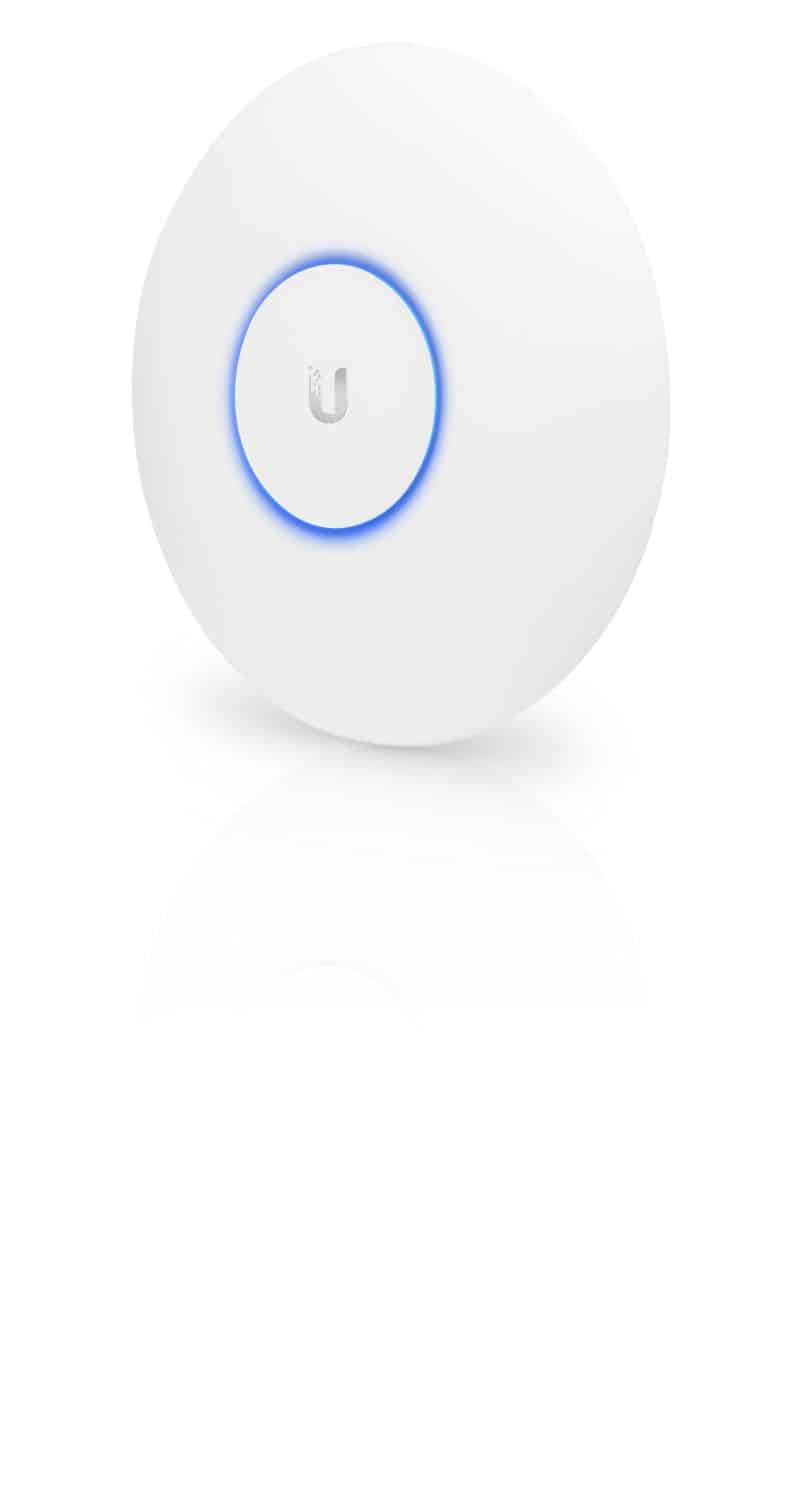

Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high-density networks and critical system applications.
WiFi 5 dual-radio
8 spatial streams
140 m² (1,500 ft²) coverage
500+ connected devices
Powered using PoE+*
(2) GbE uplinks
*PoE power adapter included with single unit purchases.
Technical Specifications
Mechanical
Dimensions
Ø220 x 48.1 mm (Ø8.7 x 1.9")
Weight
Without mount: 700 g (1.5 lb oz)
With mount: 830 g (1.8 lb)
Hardware
Networking interface
(2) GbE RJ45 ports
Power method
PoE+
Power supply
Gigabit PoE adapter 48V DC, 0.5A**5-packs do not come with PoE adapters.
Supported voltage range
44—57 VDC
Max. power consumption
17W
Max. TX power
2.4 GHz
5 GHz
25 dBm
25 dBm
MIMO
2.4 GHz
5 GHz
4 x 4
4 x 4
Throughput rate
2.4 GHz
5 GHz
800 Mbps
1733 Mbps
Antenna gain
2.4 GHz
5 GHz
3 dBi
4 dBi
Button
Factory reset
Mounting
Wall/c
