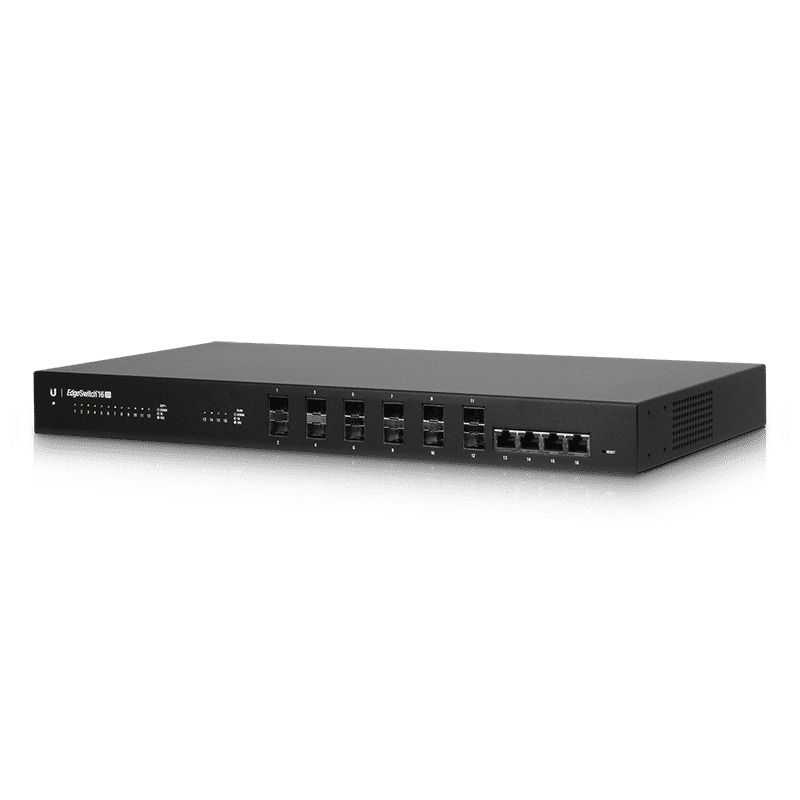

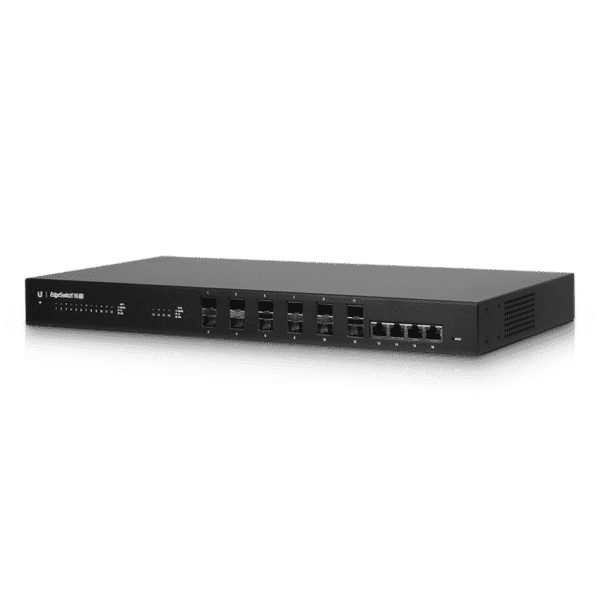

Fully managed, 10-gigabit aggregation switch with (12) SFP+ ports and (4) 10 GbE RJ45 ports.
(4) GbE RJ45 ports
(12) SFP+ ports
Rack-mountable, 1U
Technical Specifications
Mechanical
Dimensions
443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight
Without Mount Brackets: 2.62 kg (5.78 lb)
With Mount Brackets: 2.71 kg (5.97 lb)
Hardware
Networking Interfaces
(12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In-Band
Total Non-Blocking Line Rate
160 Gbps
Max. DC Power Consumption
36W (excludes SFP/SFP+ module)
Power Method
AC
DC
100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector
Power Supply
AC/DC, Internal, 56W DC
Supported Voltage Range
100 to 240VAC
25 to 16VDC
Rack-Mount
Yes, 1U High
LEDs Per Port
SFP+ Data Ports
RJ45 Data Ports
Speed/Link/Activity
Speed/Link/Activity
