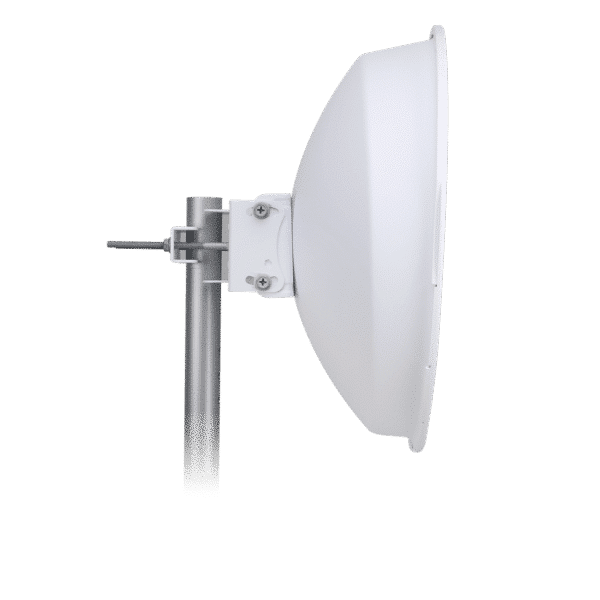

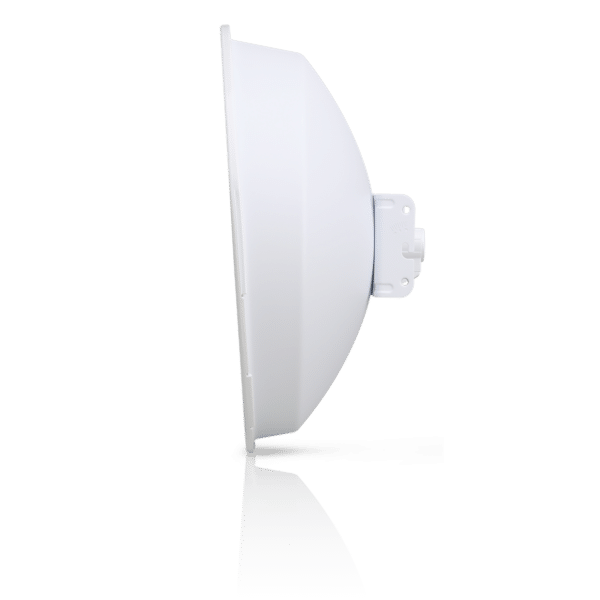

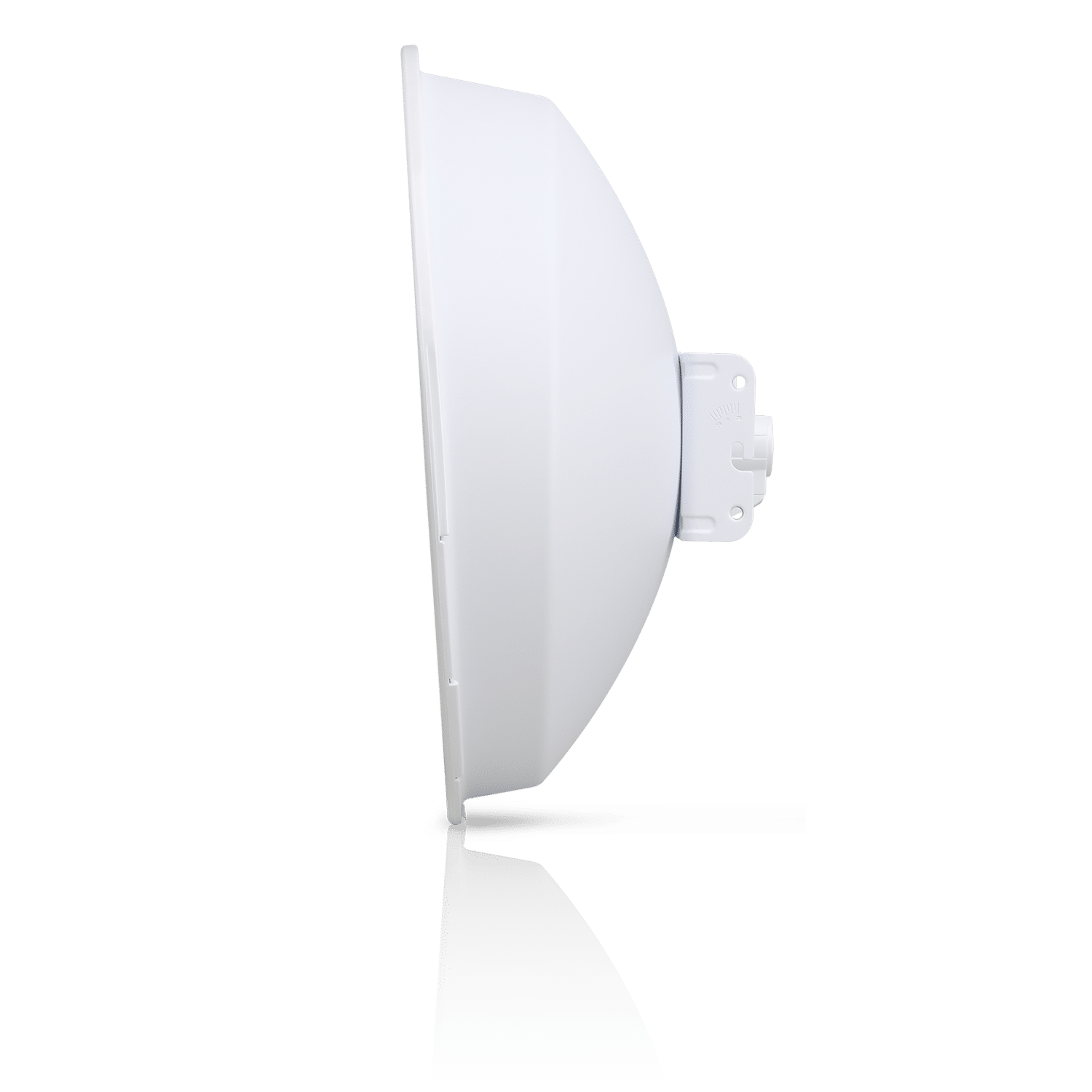

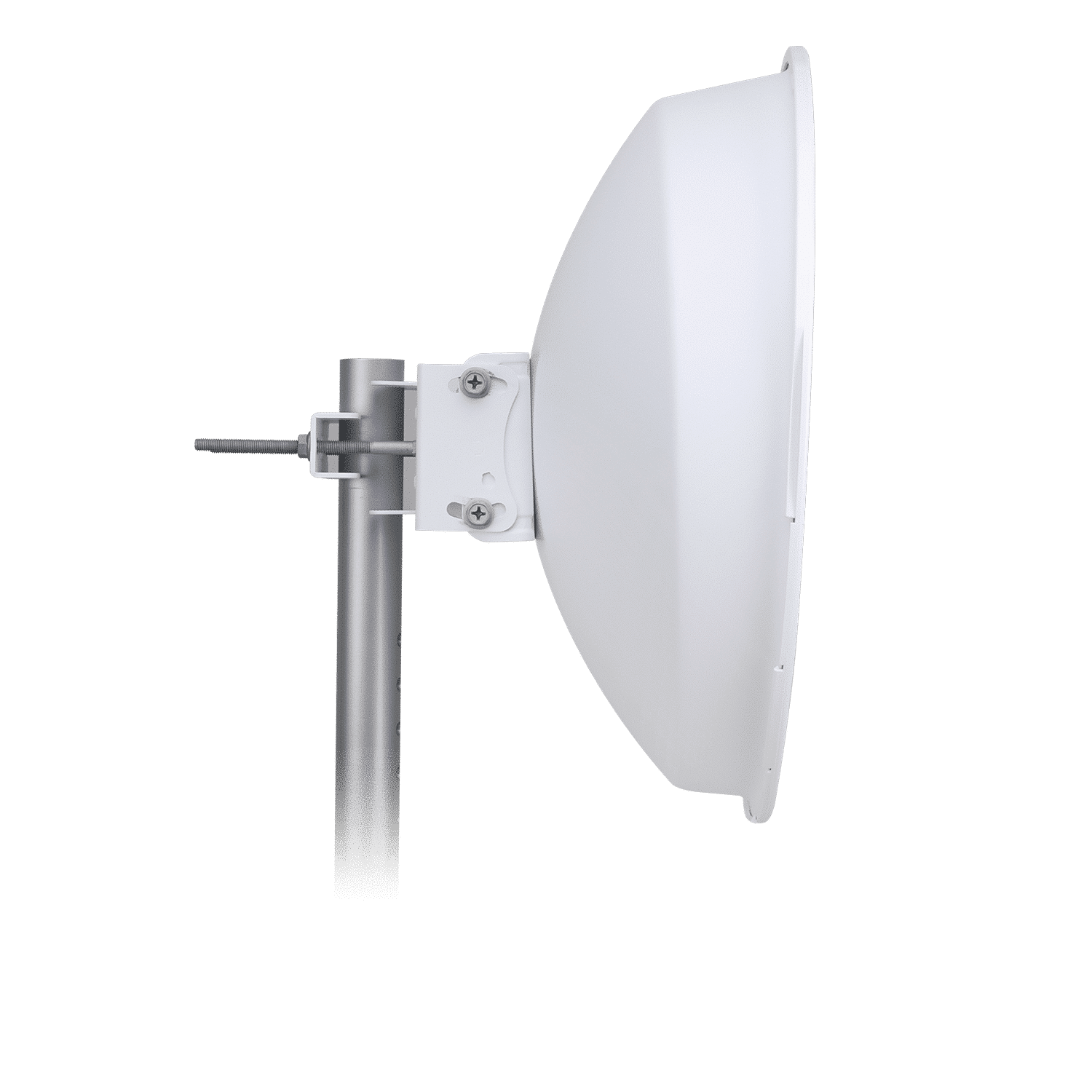

Ubiquiti airMAX PowerBeam M5 400 ISO

108,15  zzgl. USt

Processor Specs Atheros MIPS 74Kc, 560 MHz Memory 64 MB DDR2, 8 MB Flash Networking Interface (1) 10/100/1000 Ethernet Port Wireless Approvals FCC, IC, CE RoHS Compliance Yes PBE-M5-400-ISO Physical/Electrical/Environmental Dimensions 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") Weight 3.22 kg (7.10 lb) Power Supply 24V, 0.5A Gigabit PoE (Injector included) Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range 18-26VDC Max. Power Consumption 8W Gain 25 dBi Operating Frequency Worldwide USA 5170 - 5875 MHz 5725 - 5850 MHz Wind Loading 390 N @ 200 km/h (88 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) LEDs (1) Power, (1) LAN, (4) WLAN Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels Channel Sizes 5/8/10/20/30/40 MHz Polarization Dual Linear Enclosure Outdoor UV Stabilized Plastic Mounting Pole-Mount Kit Included ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Operating Temperature -40 to 70° C (-40 to 158° F) Operating Humidity 5 to 95% Non-Condensing Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test IEC 68-2-6 Temperature Shock Test IEC 68-2-14 UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Möchtest du benachrichtigt werden, wenn dieses Produkt wieder auf Lager ist?

5 GHz, 25 dBi bridge with 400 mm RF isolated reflector and 150+ Mbps throughput.

5 GHz, 25+ km link range

150+ Mbps throughput

Isolation antenna design rejects RF noise

Improved mounting

Technical Specifications

Mechanical
Dimensions
459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
Weight
3.22 kg (7.10 lb)
Enclosure material
UV-stabilized plastic
Mounting
Pole mount kit (Included)
Wind survivability
200 km/h (125 mph)
Wind loading
559 N @ 200 km/h (125.7 lbf @ 125 mph)
Hardware
Networking interface
(1) GbE RJ45 port
Power method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply
24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption
8W
ESD/EMP protection
Air/contact: ± 24 kV
LEDs
(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs
Software-adjustable to correspond to custom RSSI levels
RoHS compliance
Yes
Salt fog test
IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibrati
