Ubiquiti EdgeSwitch 48 / 48 Gigabit RJ45 Ports / 2 SFP+ Ports / 2 SFP Ports / 500W / PoE+ / ES-48-500W

Support auf Maß
+ Installationservice
+ Managed Services

Ubiquiti EdgeSwitch 48 / 48 Gigabit RJ45 Ports / 2 SFP+ Ports / 2 SFP Ports / 500W / PoE+ / ES-48-500W

824,64  zzgl. USt

? (48) Gigabit RJ45 ports ? (2) SFP+ ports ? (2) SFP ports ? Total, non-blocking throughput: 70 Gbps ? Maximum power consumption: 500W ? Supports POE+ IEEE 802.3at/af and 24V Passive PoE ? Rackmountable ? (48) Gigabit RJ45 ports ? (2) SFP ports, 2 SFP+ ports ? Total, non-blocking throughput: 26 Gbps ? Maximum power consumption: 500W ? Supports POE+ IEEE 802.3at/af and 24V Passive PoE ? Rackmountable Advanced Layer 2 Features ? Broadcast Storm Recovery ? Broadcast/Multicast/Unknown Unicast Storm Recovery ? DHCP Snooping ? IGMP Snooping Querier ? Independent VLAN Learning (IVL) Support ? Jumbo Ethernet Frame Support ? Port MAC Locking ? Port Mirroring ? Protected Ports ? Static MAC Filtering ? TACACS+ ? Voice VLANs ? Unauthenticated VLAN ? Internal 802.1X Authentication Server Layer 3 Routing ? Static Routing ? Policy Based Routing

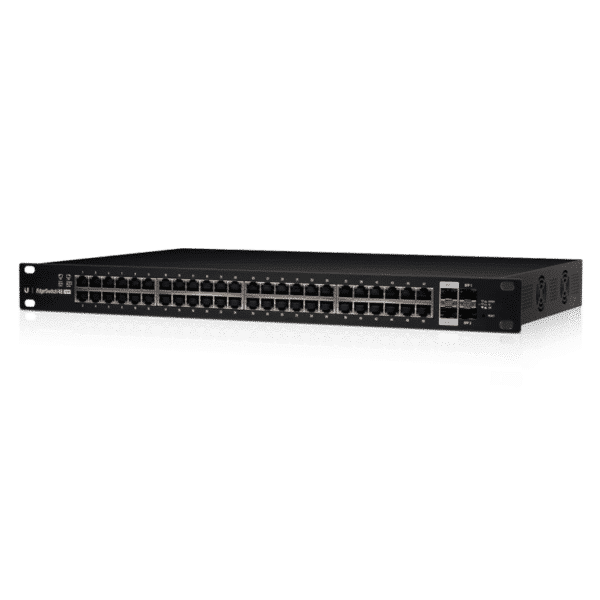

Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 500W power supply.

(48) GbE RJ45 ports

(2) SFP and (2) SFP+ ports

500W total PoE availability

Rack-mountable, 1U

Technical Specifications

Mechanical
Dimensions
485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight
6.1 kg (13.5 lb)
Hardware
Networking Interfaces
(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput
70 Gbps
Switching Capacity
140 Gbps
Forwarding Rate
104.16 Mpps
Max. Power Consumption
Includes PoE Output
Excludes PoE Output

500W
64W
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 500W DC
LEDs Per Port
RJ45 Data Ports
SFP+/SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity
Rackmount
Yes, 1U Hi
