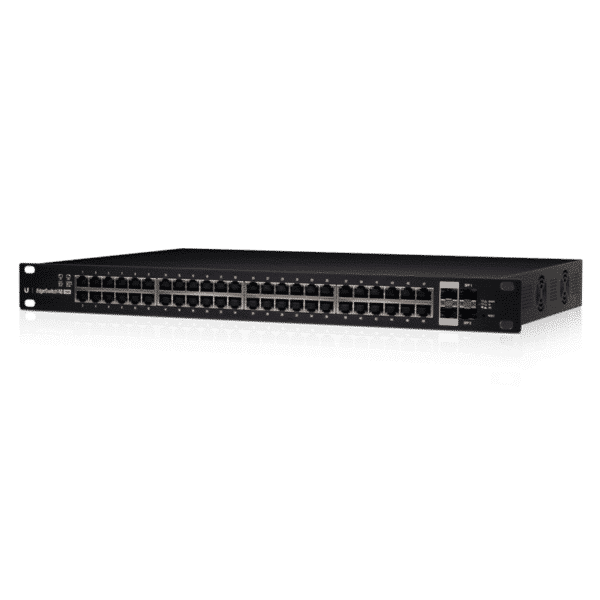

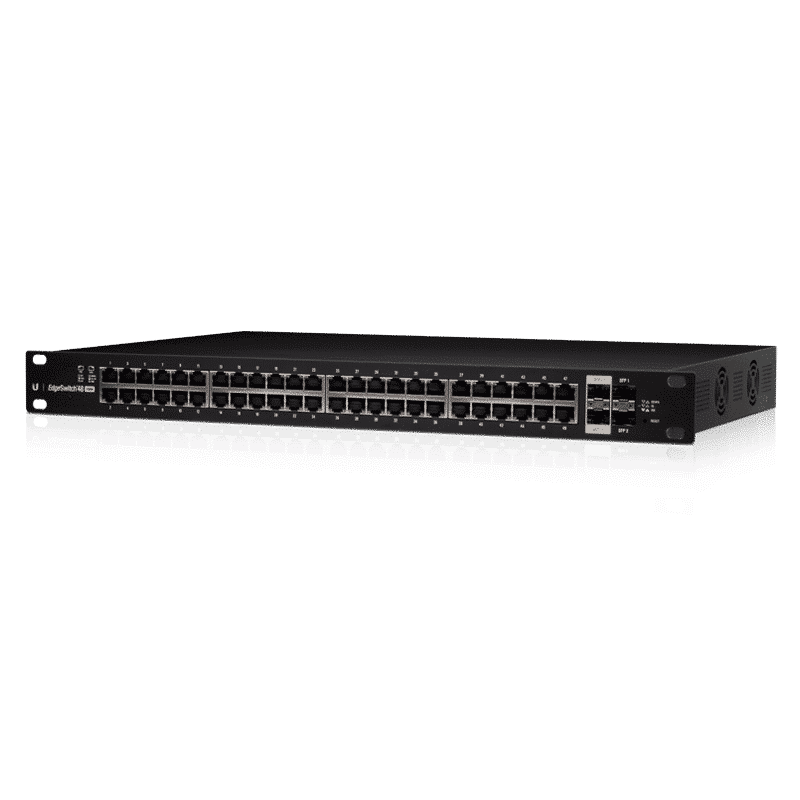

Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 750W power supply.
(48) GbE RJ45 ports
(2) SFP and (2) SFP+ ports
750W total PoE availability
Rack-mountable, 1U
Technical Specifications
Mechanical
Dimensions
485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75″)
Weight
6.5 kg (14.3 lb)
Hardware
Networking Interfaces
(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput
70 Gbps
Switching Capacity
140 Gbps
Forwarding Rate
104.16 Mpps
Max. Power Consumption
Includes PoE Output
Excludes PoE Output
750W
64W
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 750W DC
LEDs Per Port
RJ45 Data Ports
SFP+/SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Rackmount
Yes, 1U Hi
