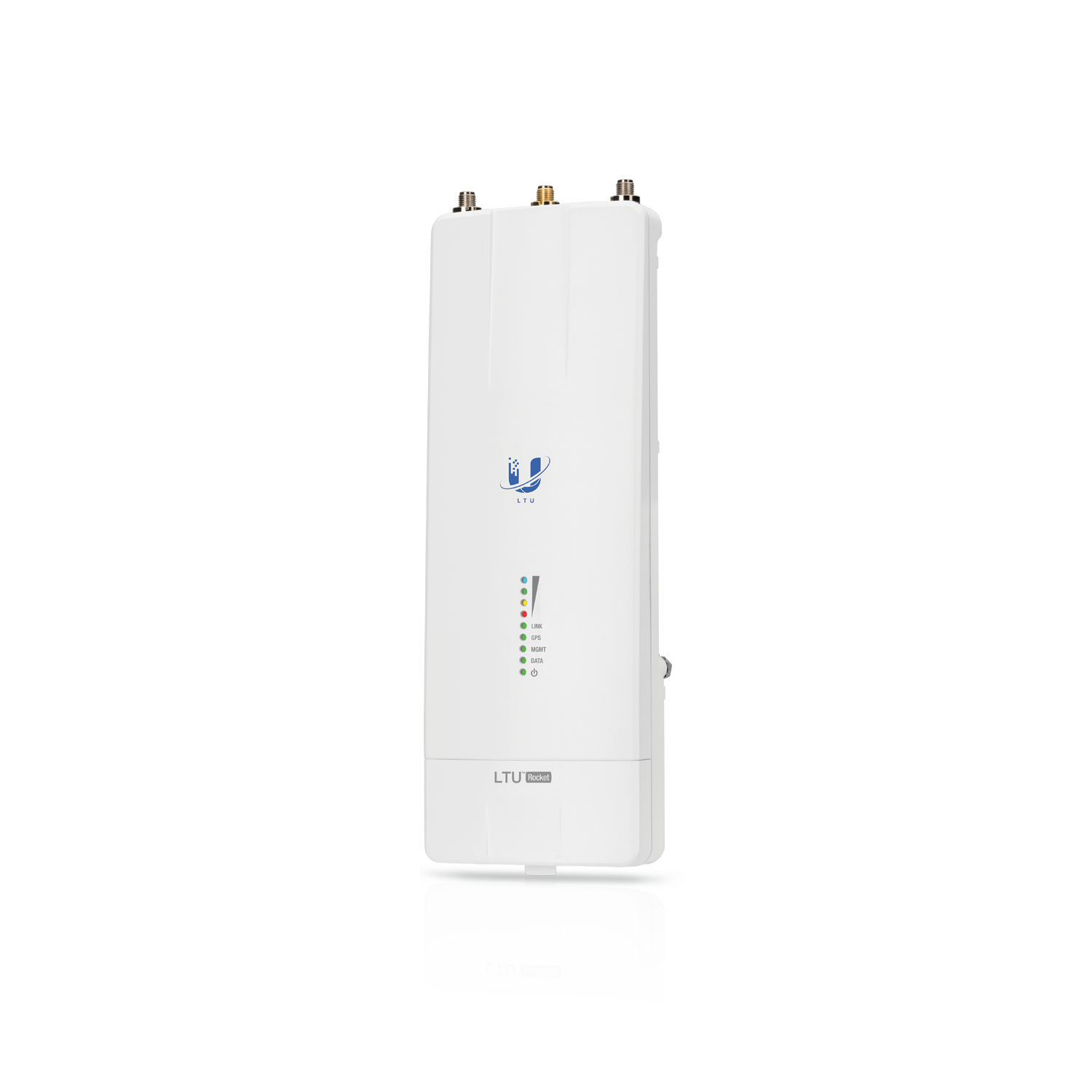

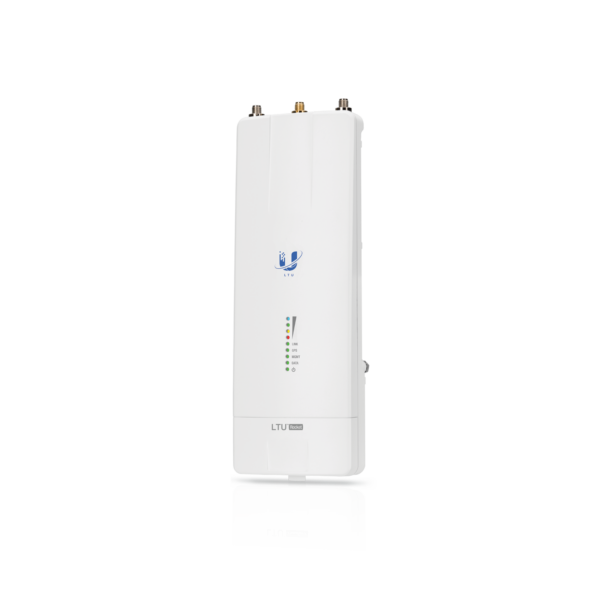

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients.
Integrated 5 GHz advanced filtering performance
900+ Mbps throughput*
100+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Note. Compatible with LTU devices only.
*FW version 2.3.0 and later.
Technical Specifications
Mechanical
Dimensions
224 x 82 x 48mm (8.82 x 3.23 x 1.89")
Weight
468 g (1.03 lb)
Enclosure materials
Diecast aluminum, polycarbonate
Mount materials
Metal, polycarbonate
Mounting
Integrated pole mount (Kit included)
GPS pole mount (Kit included)
Rocket mount compatible
Weatherproofing
IP67
Hardware
Networking interface
(2) GbE RJ45 ports
Power method
Dual passive PoE
Power supply
24V, 1A PoE Gigabit adapter (Included)
Supported voltage range
18—54V DC
Max. power consumption
25W
RF connections
(2) RP-SMA weatherproof (CH0, CH1)
(1) SMA weath
