Ubiquiti POE Adapter, EdgePoint, POE-54V-80W

Support auf Maß
+ Installationservice
+ Managed Services

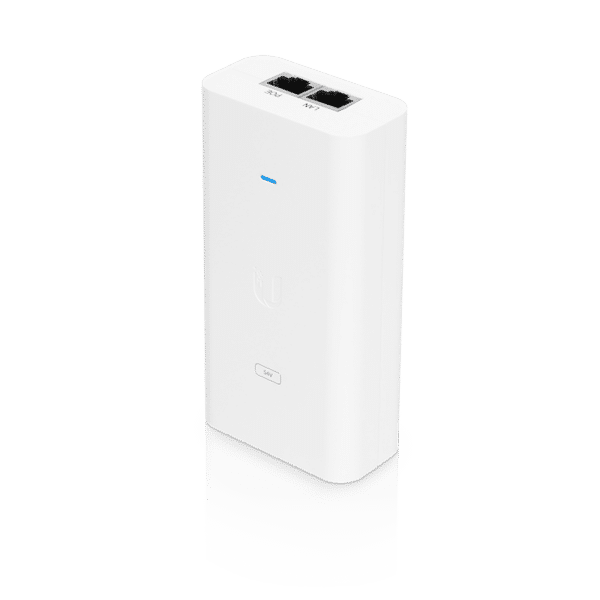

Ubiquiti POE Adapter, EdgePoint, POE-54V-80W

29,98  zzgl. USt

Ubiquiti POE Adapter, EdgePoint, POE-54V-80W

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.

Surge and clamping protection

Maximum surge discharge

Peak pulse current

AC cable with earth ground

Technical Specifications

Specifications
Model
POE-54V-80W
Dimensions
123 x 65 x 34 mm (4.84 _ 2.56 _ 1.34”)
Weight
299 g (10.55 oz)
Output Voltage
54VDC @ 1.5A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current
<80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency
87+%
Output Ripple
1% Max.
Switching Frequency
100 kHz Max.
Line Regulation
≤ 3%
Load Regulation
≤ 5%
2-Pair Powering

4-Pair Powering
Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature
0 to 40° C (32 to 104° F)
Storage Temperature
-30 to 70°C (-22 to 158° F)
Operating
