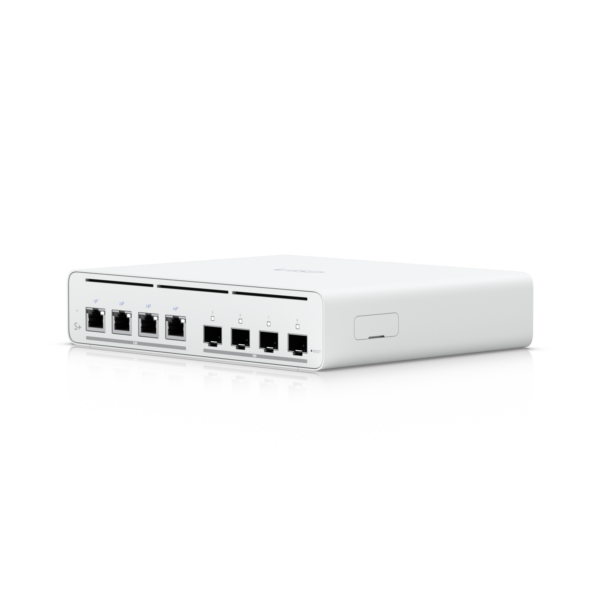

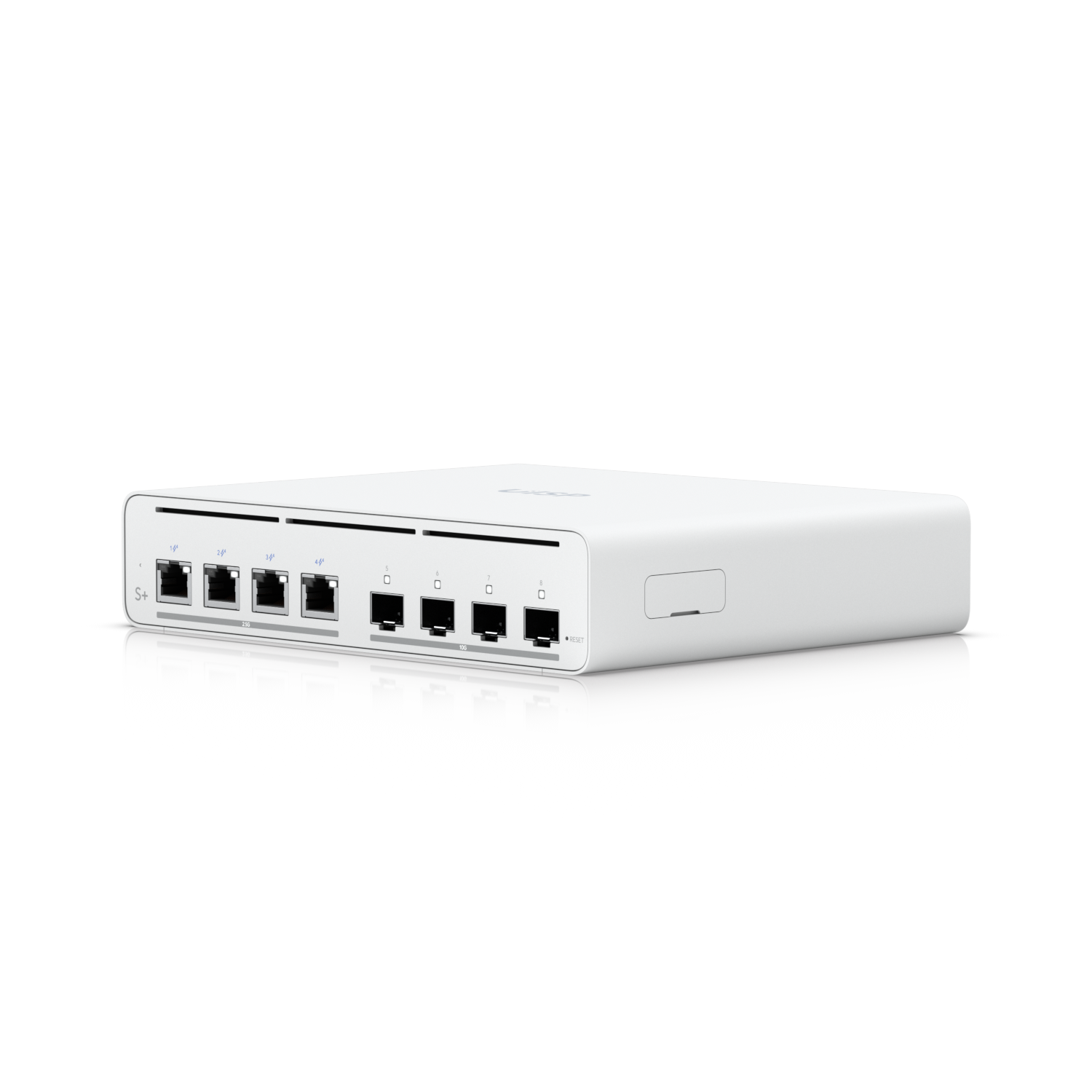

2.5-GbE PoE switch for ISP applications.

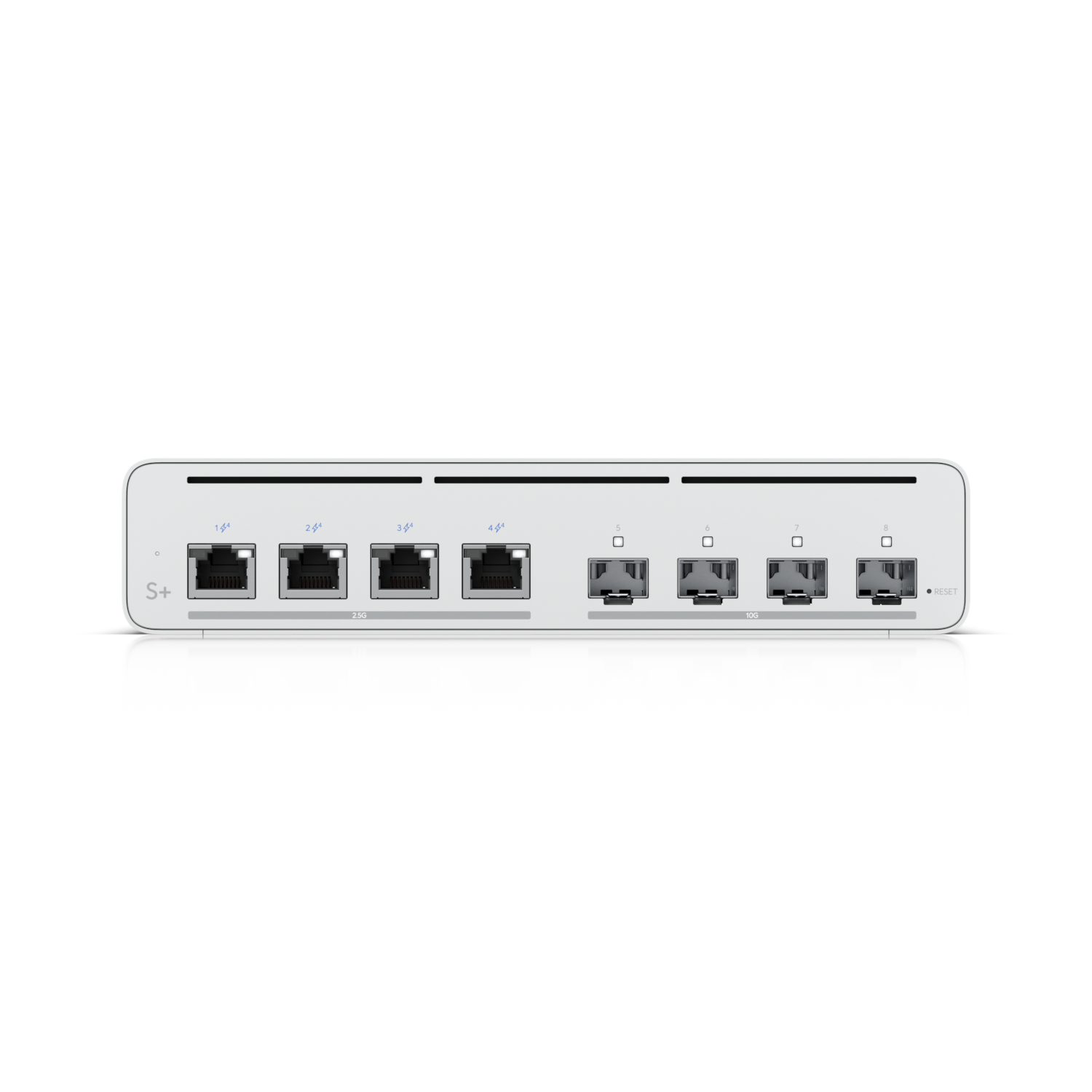

(4) 2.5 GbE RJ45 ports with 27 V passive PoE output
(4) 10G SFP+ ports
160 W (27 V) total PoE availability*, 20 W/port (2-pair) / 40 W/port (4-pair)
Port isolation, speed limiting and DHCP snooping functionality
(1) Power TransPort™-input for DC redundancy
Desk, wall, 1U rack and external mounting**
Standalone management via local web interface and UISP application integration
*When powered via the supplied AC/DC adapter.
**When included in the UISP Box Plus (sold separately).
Mechanical
Maße
210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7 inches)
Weight
1.75 kg
Walking materials
SGCC steel, polycarbonate/acrylonitrile-butadiene-styrene
Hardware
Processor
Dual-core ARM®v8 Cortex®-A55 with 1.4 GHz
Reminder
1 GB DDR4
Integrated flash memory
256 MB NAND
Network interface
(4) 1/2.5 GbE RJ45 LAN ports
(4) 1/10G SFP+ ports
Management interface
Ethernet In-Band
Bluetooth
Total non-blocking th
