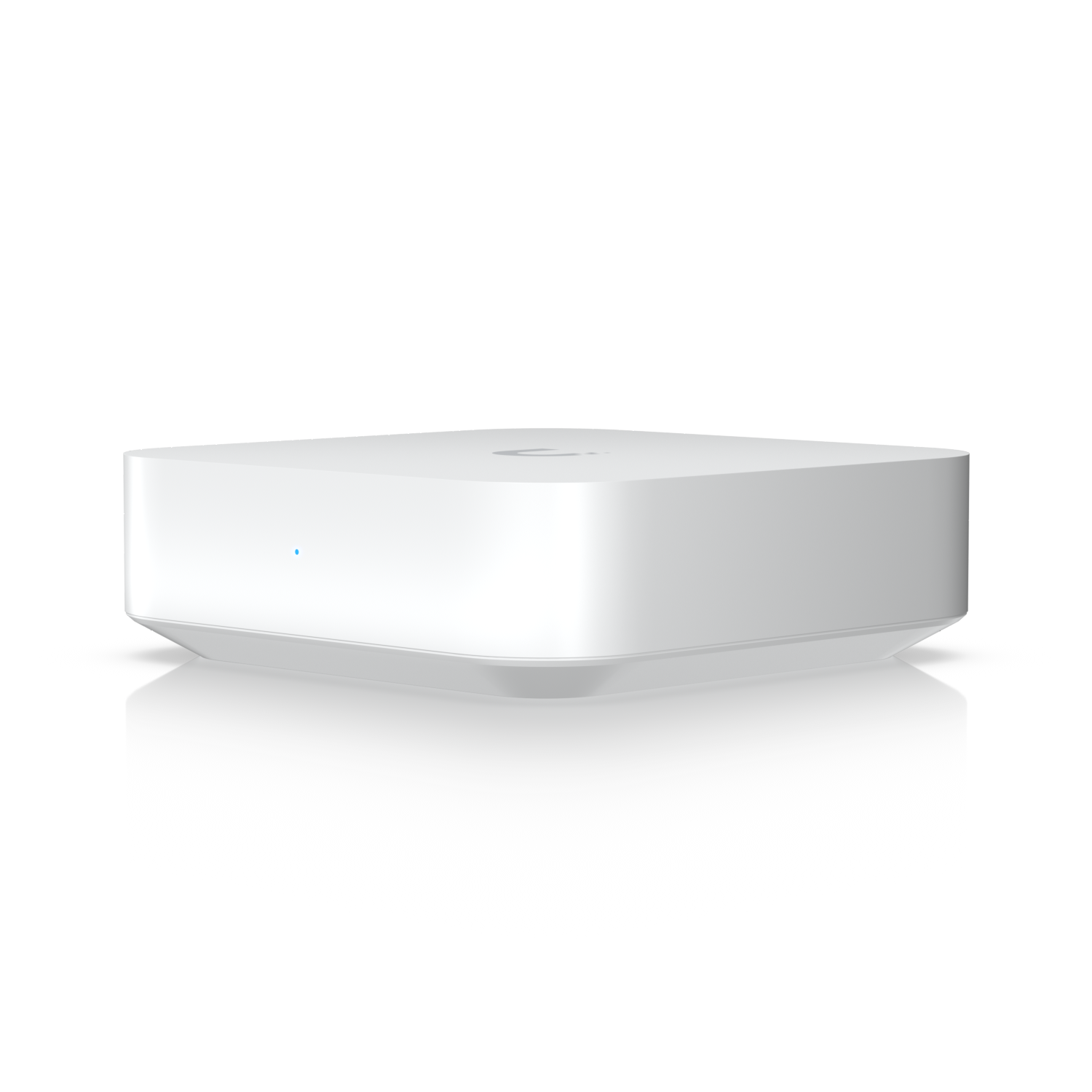

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
(1) GbE WAN port
(1) GbE LAN port
Compact footprint
USB-C powered (adapter included)
Technical Specifications
Mechanical
Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2″)
Weight
320 g (11.3 oz)
Enclosure materials
Polycarbonate
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
Ethernet
Bluetooth 5.1
Networking interface
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
3.83W
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
