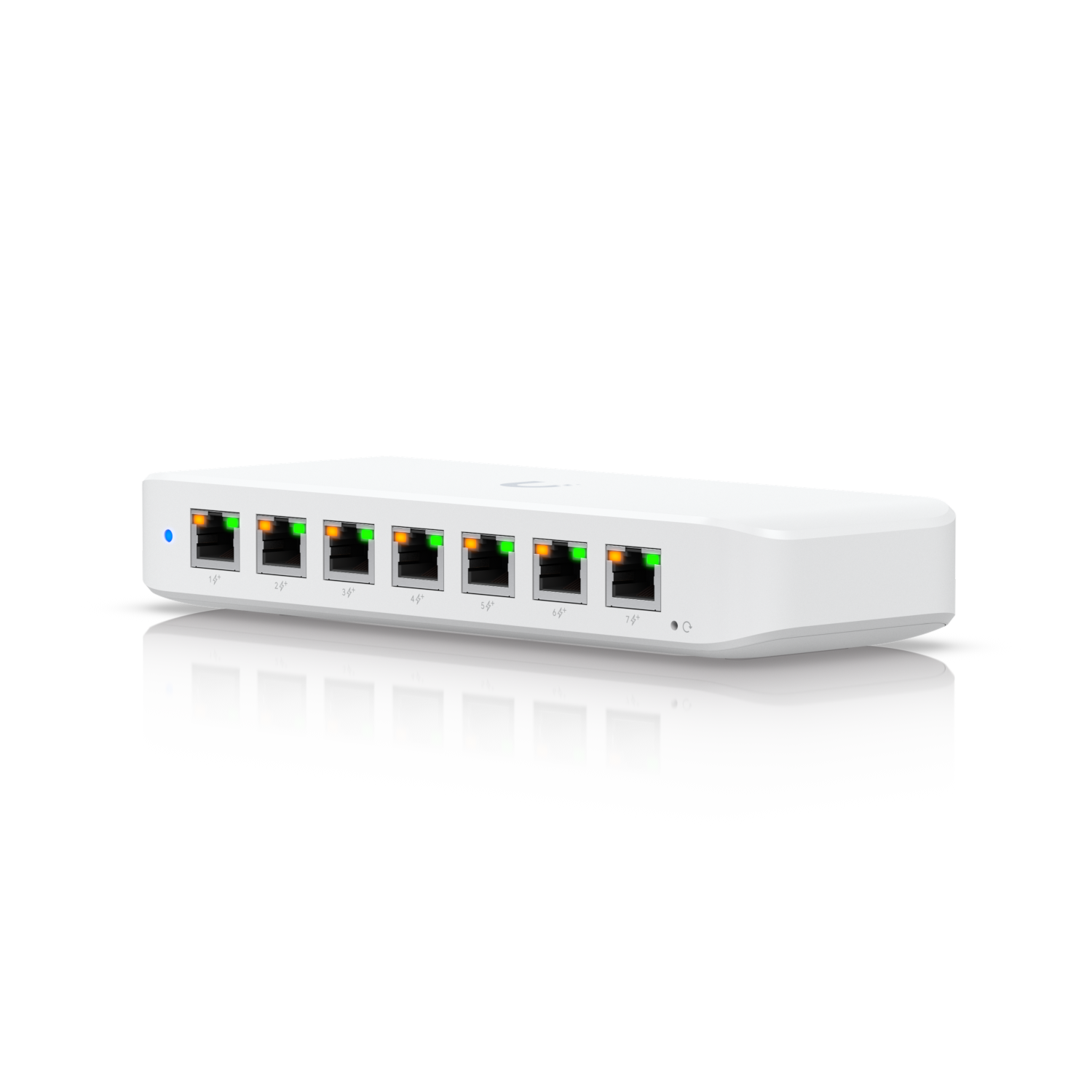

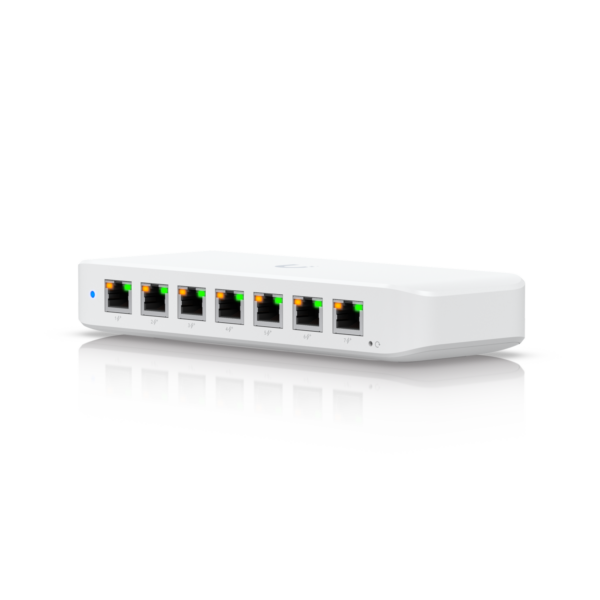

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
(7) GbE PoE+ output ports
(1) GbE port with optional PoE++ input*
— 202W PoE availability with the included AC power adapter
— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
Technical Specifications
Mechanical
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")
Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
PoE interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Total non-blocking throughput
8 Gbps
Switching capacity
16 Gbps
Power method
(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+;
