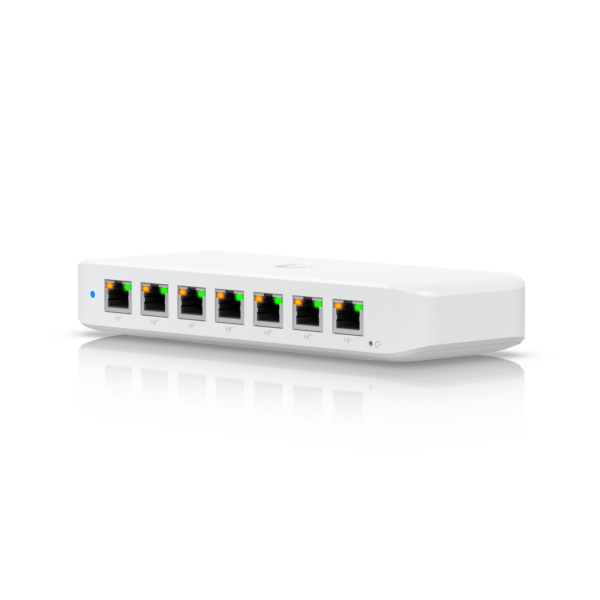

A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.
(7) GbE PoE+ output ports
(1) GbE port with optional PoE++ input
— 52W PoE availability with the included AC power adapter
— 42W PoE availability with PoE++ input
— 17W PoE availability with PoE+ input
— 8W PoE availability with PoE input
Technical Specifications
Mechanical
Dimensions
202.9 x 76 x 33 mm (8 x 3 x 1.3″)
Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
60W adapter: 330 g (11.6 oz)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
PoE interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput
8 Gbps
Power method
54V, 3.9A power adapter (Included)
PoE++ (Pins 4, 5+; 7, 😎
Power supply
54V, external, 1.1A/60W
Supported voltage range
44—57V DC
Total available PoE
60W PoE++ input: 45W
DC adapter input: 52W
