Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.
Covers both 2.4 and 5 GHz bands
300+ Mbps throughput*
Plug-and-play integration with airMAX antennas
*Only at 5 GHz frequency band.
Technical Specifications
Mechanical
Dimensions
190 x 46 mm (7.48 x 1.81″)
Weight
116 g (4.09 oz)
Enclosure manterial
Polycarbonate
Hardware
Networking interface
(1) GbE RJ45 port
Power method
24V passive PoE (pairs 4, 5+; 7, 8 return)
Power supply
24V DC, 0.3A (minimum)
Max. power consumption
7W
Output power
22 dBm
Throughput
2.4 GHz
5 GHz
160+ Mbps
300+ Mbps
ESD/EMP protection
Air/contact ± 24 kV

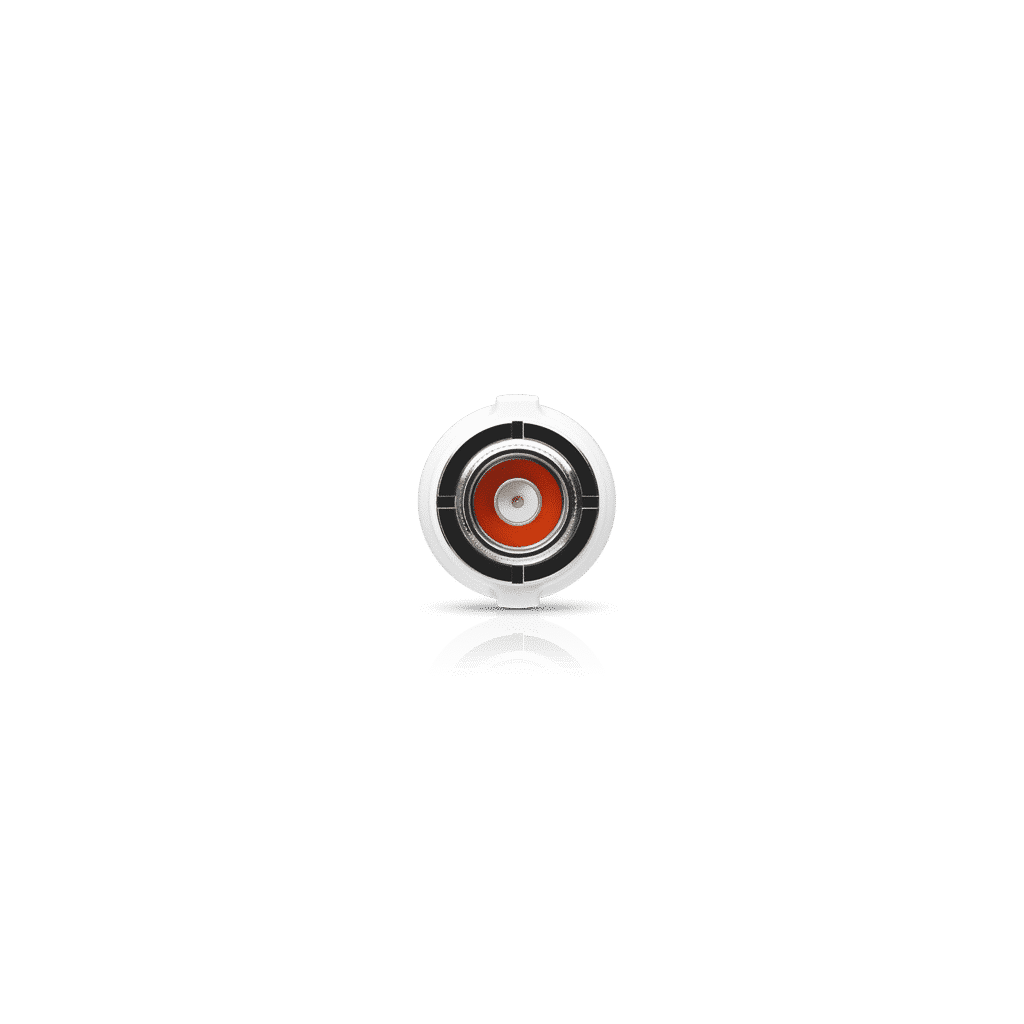

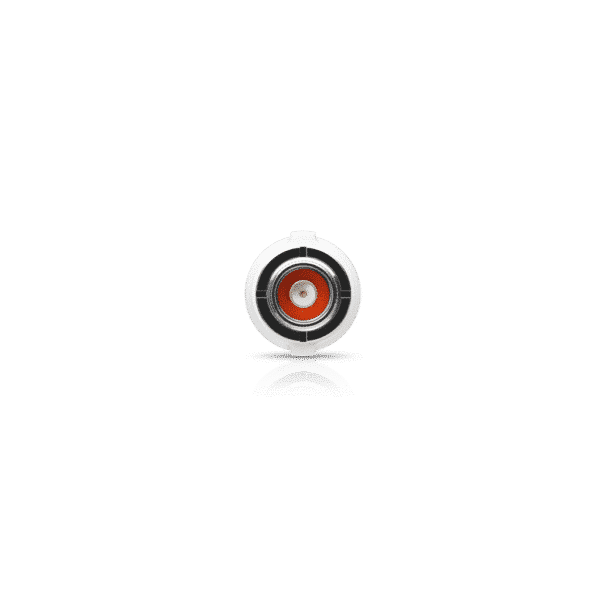

Antenna connector
N-type connector
LEDs
Power, Ethernet, ?(4) signal strength
Shock and Vibration
ETSI300-019-1.4
Operating temperature
-40 to 70° C (-40 to 158° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Operating Frequency
