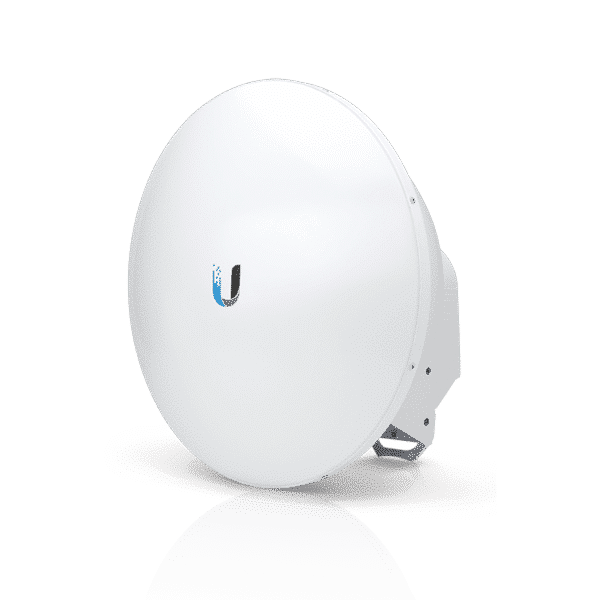

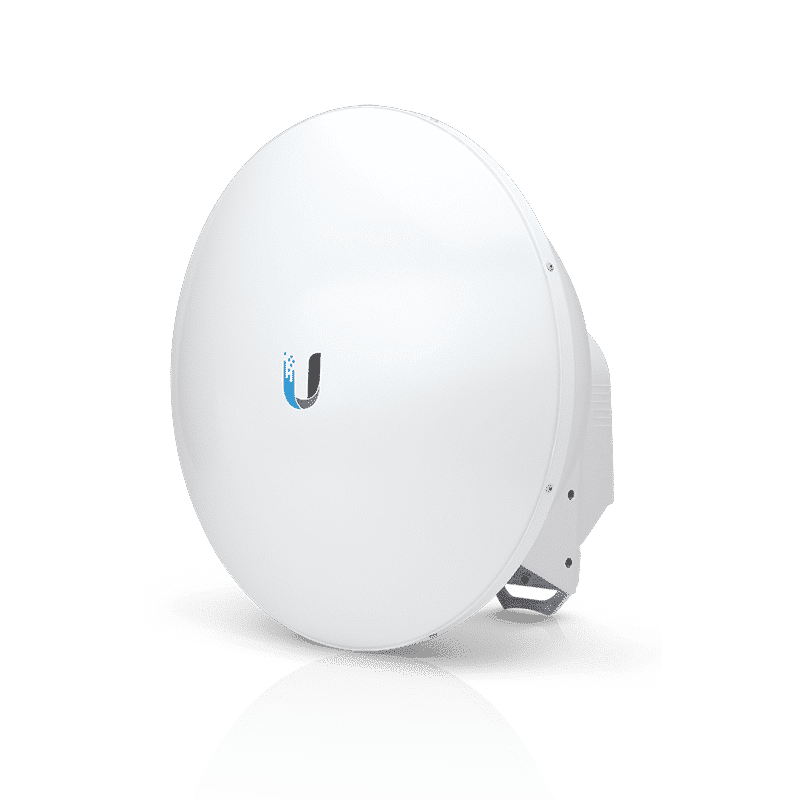

5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links.
2×2 dual-polarity performance
Robust mechanical design for outdoor application use
Secure pole-mounting
Compatible with airFiber X radios
Technical Specifications
AF-5G30-S45
Dimensions
650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)
Weight
With Mount: 7.4 kg (16.31 lb)
Frequency
5.1 – 5.9 GHz
Gain
30 dBi
Max. VSWR
1.6:1
Wind Survivability
200 km/h (125 mph)
Wind Loading
790 N @ 200 km/h (178 lbf @ 125 mph)
Polarization
Dual Linear
F/B Ratio
30 dB
ETSI Specification
EN 302 326 DN2
Mounting
Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
