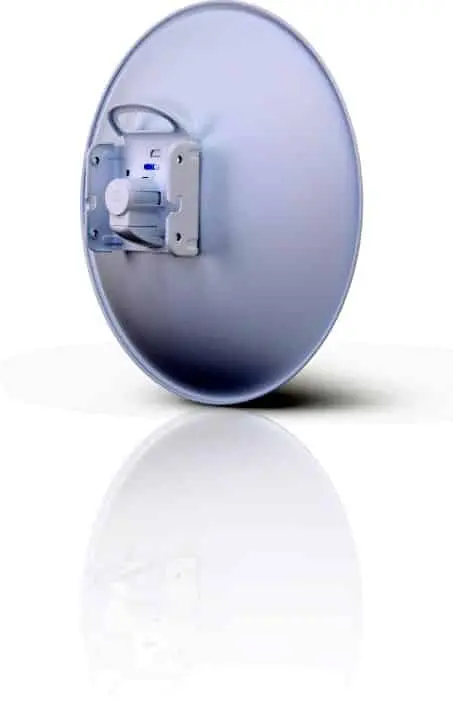

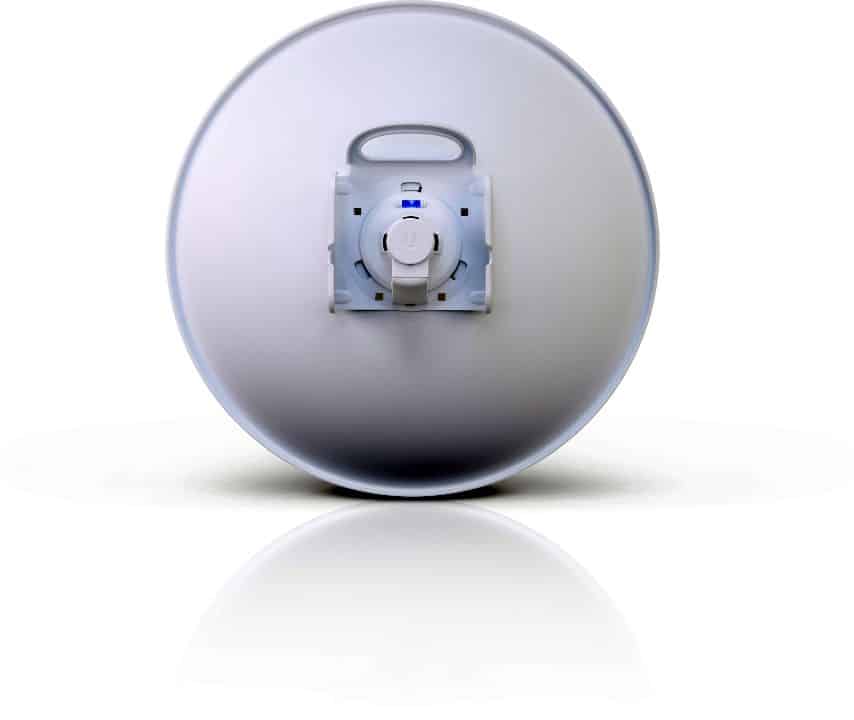

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.
5 GHz, 15+ km link range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Technical Specifications
Mechanical
Dimensions
420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight
2.22 kg (4.89 lb)
Enclosure materials
UV-stabilized plastic, powder-coated SPCC
Wind loading
380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability
200 km/h (125 mph)
Mounting
Pole mount kit (Included)
Hardware
Networking interface
(1) GbE RJ45 port
Power method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. power consumption
8.5W
Power supply
24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range
20—26V DC
ESD/EMP protection
Air/contact: ± 24 kV
LEDs
(1) Power, (1) LAN, (4) WLAN
RoHS compliance
Yes
Salt fog test
IEC 68-2-11 (ASTM B117)
