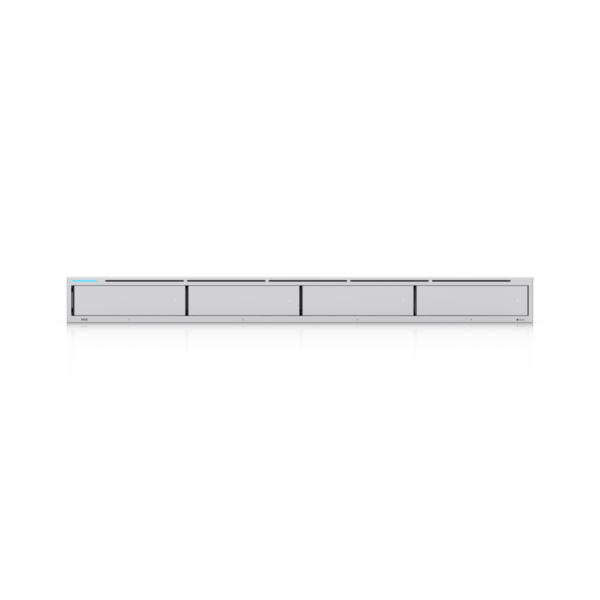

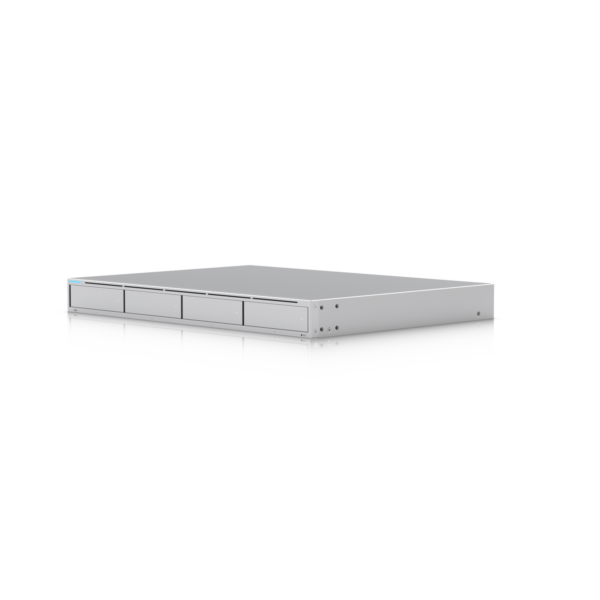

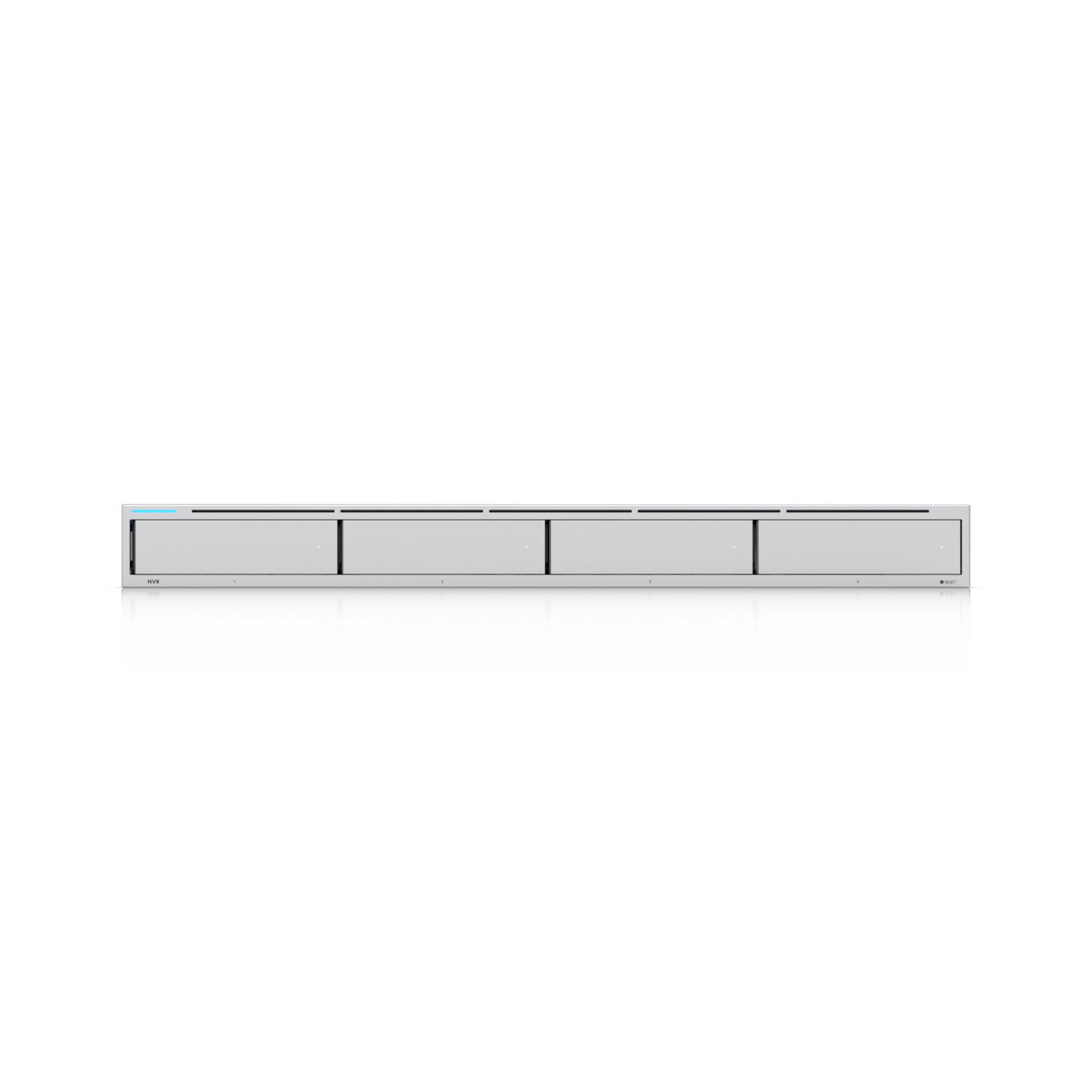

A video recorder with (4) 2.5/3.5″ HDD bays that can support up to 30 days of storage for (15) 4K cameras or (50) Full HD cameras.
(4) 3.5″ HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
DC power backup-ready
Technical Specifications
Mechanical
Dimensions
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7″)
Weight
Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material
SGCC steel
Mount material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
Power method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 10.43A
Power supply
AC/DC, internal, 120W
Supported voltage range
100—240V AC
Max. power consumption
100W
Max. power budget for Drives
75W
ESD/EMP protection
Air: ± 12kV, contact: ± 8kV
Operati
