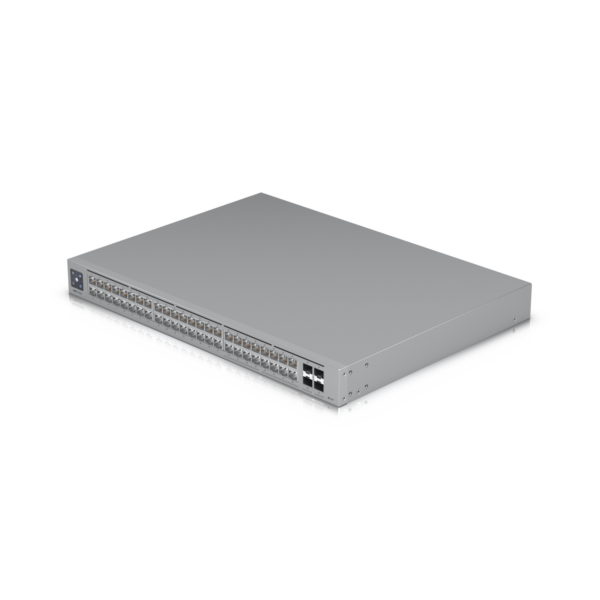

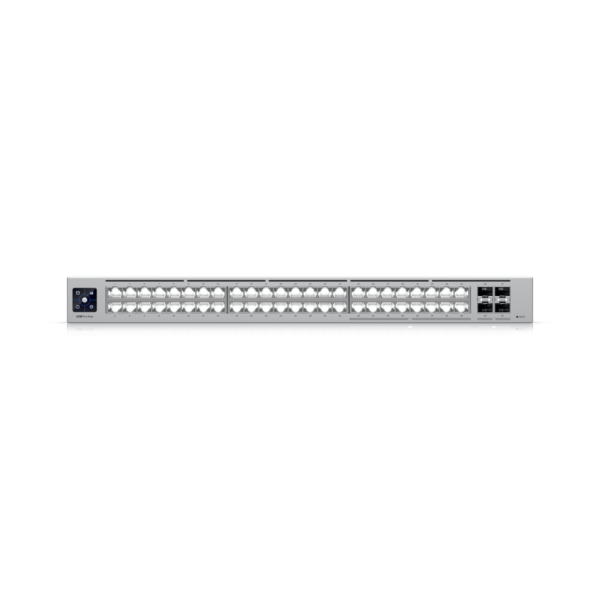

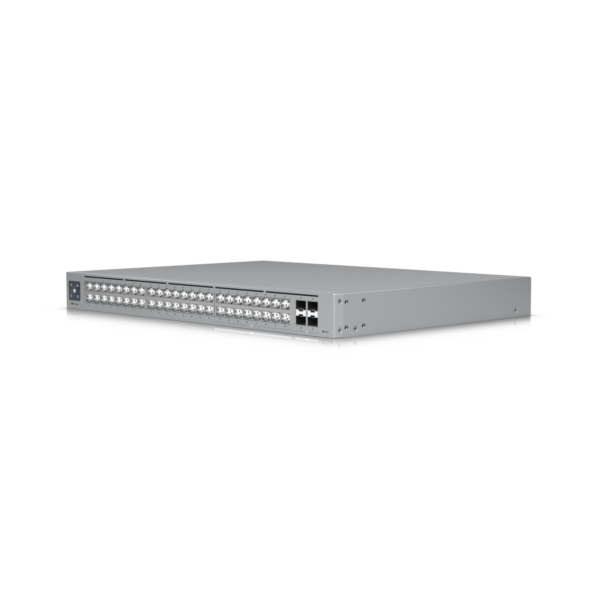

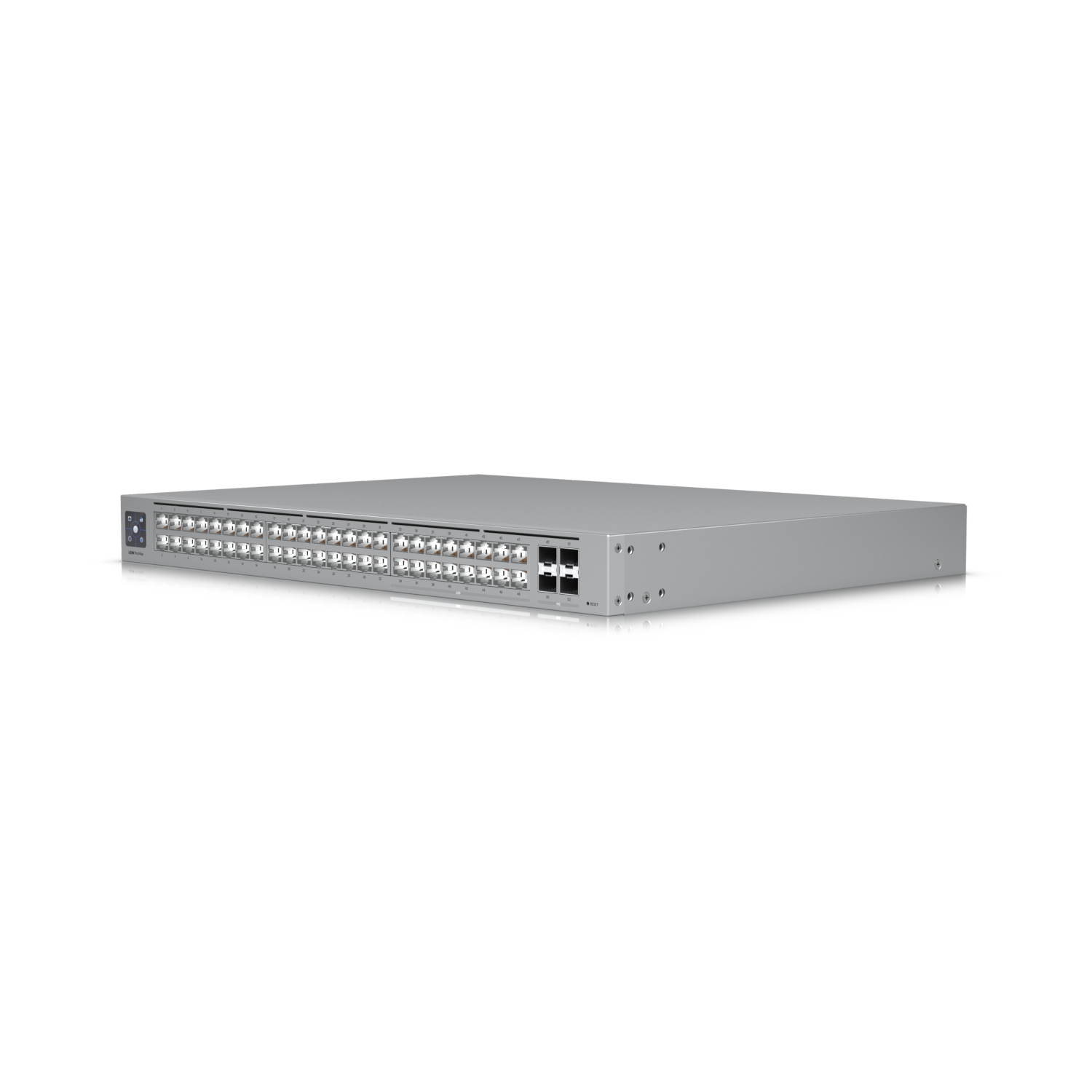

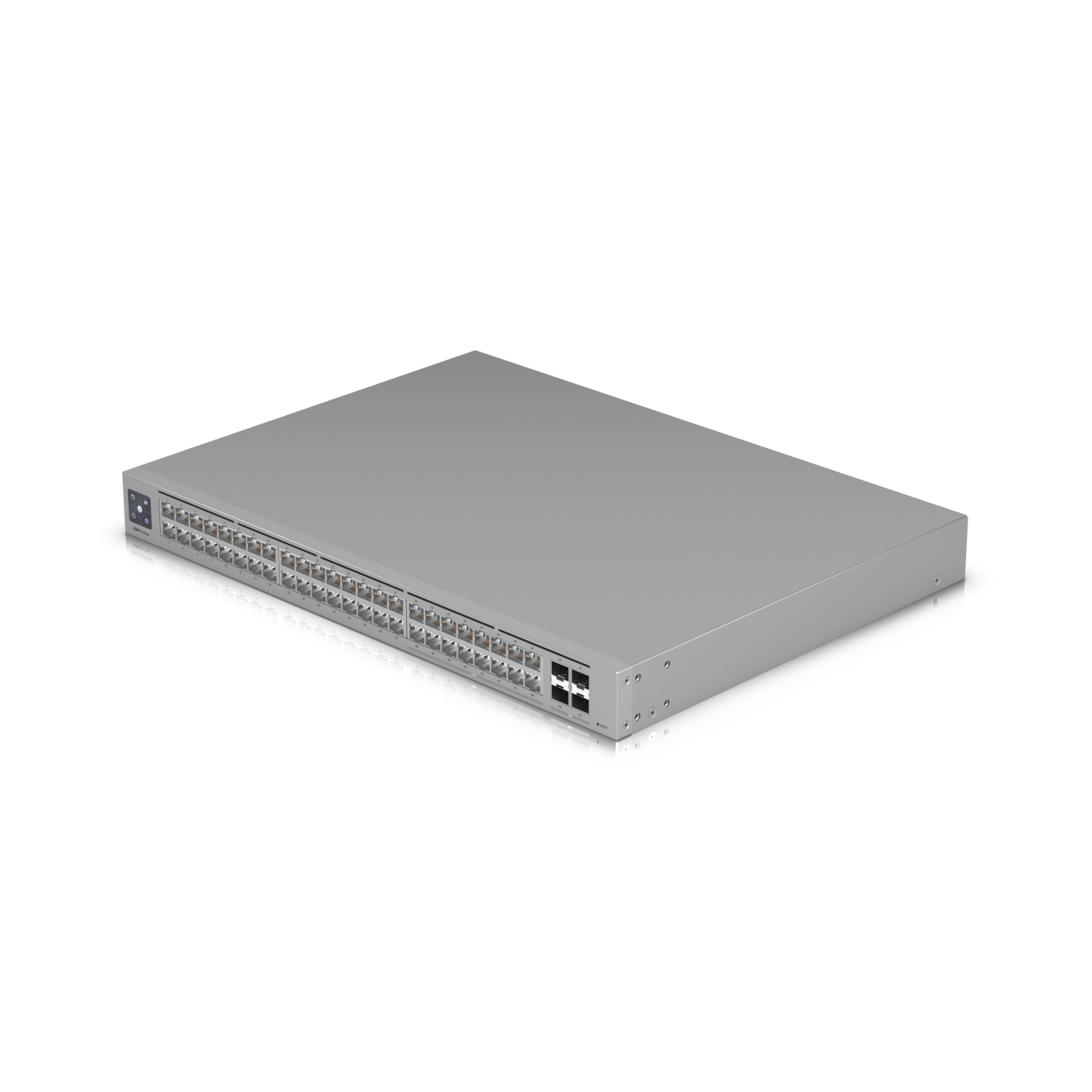

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE RJ45 ports
(32) GbE RJ45 ports
(4) 10G SFP+ ports
DC power backup ready
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Technical Specifications
Mechanical
Dimensions
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7″)
Weight
Without mounting brackets: 4.8 kg (10.6 lb)
With mounting brackets: 4.9 kg (10.8 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
Total non-blocking throughput
112 Gbps
Switching capacity
224 Gbps
Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input
Power supply
AC/DC, internal, 100W
Supported voltage range
100—240
