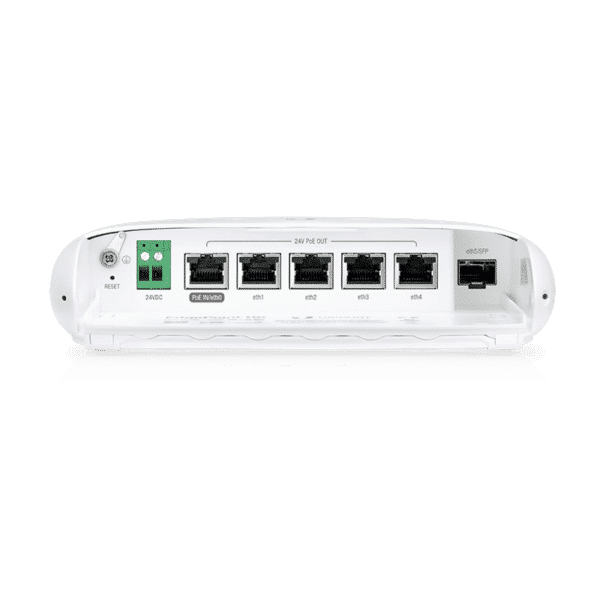

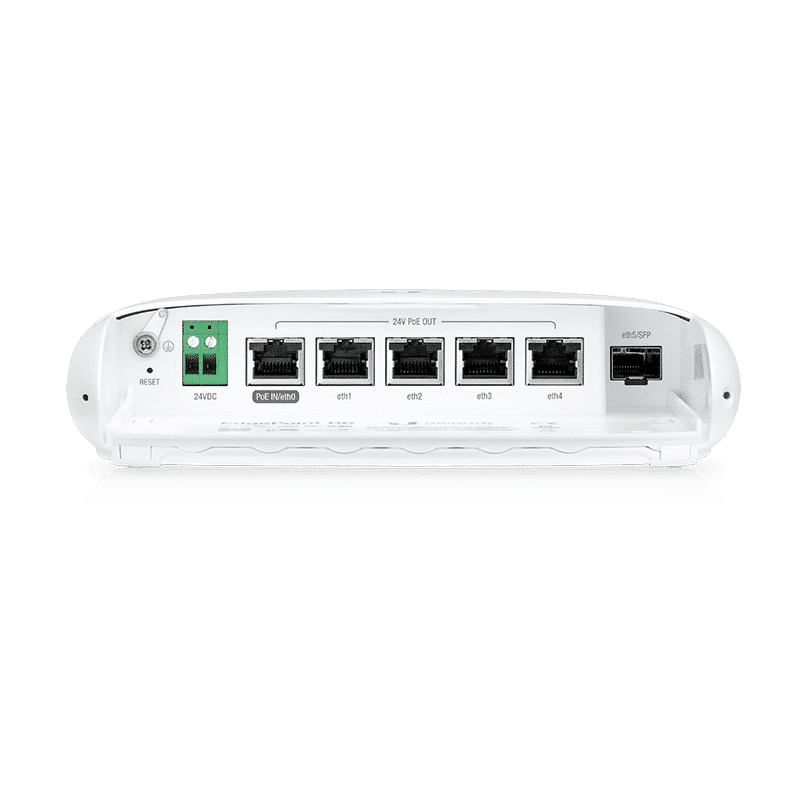

Dimensions 188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96″) Weight 605 g (1.33 lb) Max. Power Consumption 7W (Excludes PoE Output) Power Input (1) DC Terminal Block or (1) RJ45 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) Power Supply Min. 24V / 0.3A (Excludes PoE Output Power) VDC Input 24V, 3A Passive PoE Input (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 (Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.) Passive PoE Output (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4 Power Monitoring (1) DC Terminal Block, Input Power (1) RJ45, eth0, Input Power Supported Voltage Range 26 to 16VDC Button Reset LEDs System eth0 to eth4 eth5/SFP Power Speed/Link/Activity, PoE Speed/Link/Activity Ports Data Ports (5) 10/100/1000 RJ45 Ports (1) 1 Gbps SFP Port Processor Dual-Core 880 MHz, MIPS1004Kc System Memory 256 MB DDR3-1600 RAM Code Storage 256 MB NAND Certifications CE, FCC, IC Pole Mount Yes Operating Temperature -20 to 65° C (-4 to 149° F) Operating Humidity 10 to 90% Noncondensing
