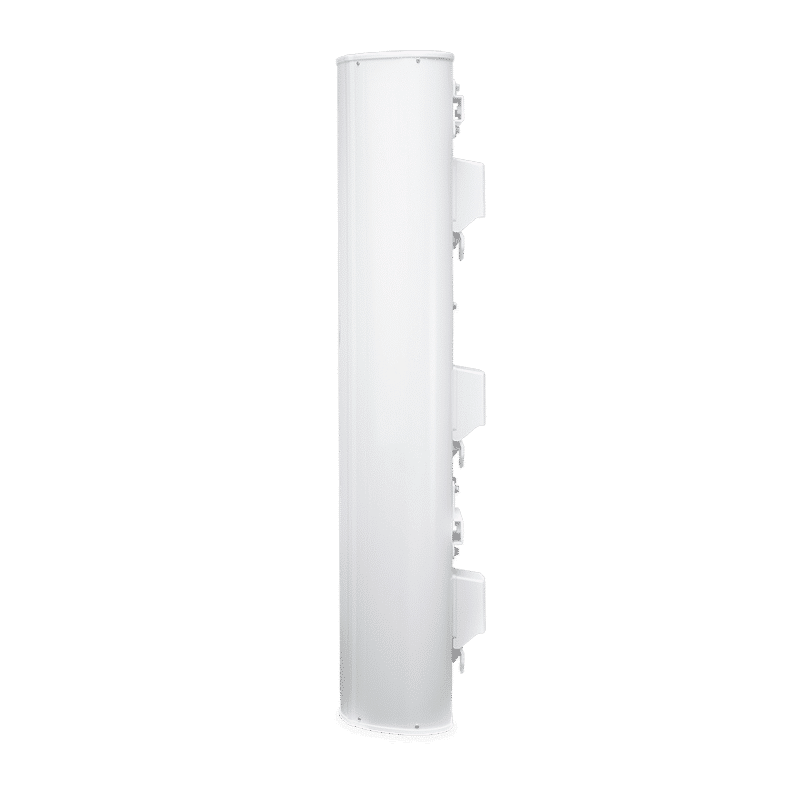

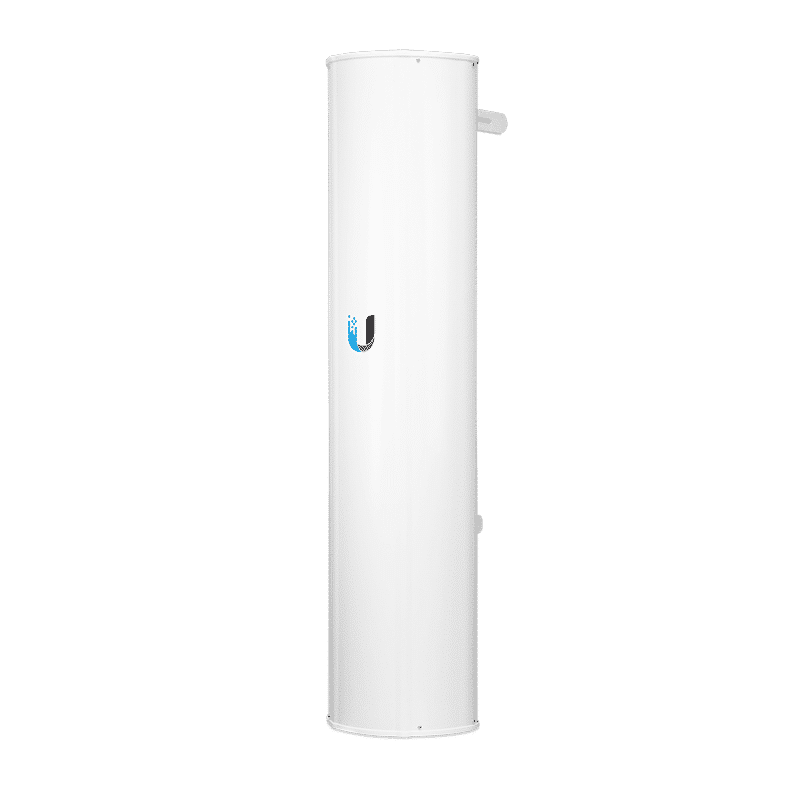

5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.
Powerful performance for high-density areas
Efficient footprint for reduced tower costs
Compatible with Rocket Prism 5AC
Technical Specifications
AP-5AC-90-HD
Dimensions
With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18″)
Weight
With Mount: 13.1 kg (28.9 lb)
Frequency Range
5.15 – 5.85 GHz
Gain
22 dBi
HPOL Beamwidth
3 x 30° (6 dB)
VPOL Beamwidth
3 x 30° (6 dB)
Elevation Beamwidth
8°
Electrical Downtilt
2°
Polarization
Dual-Linear
Max. VSWR
1.75:1
Wind Survivability
200 km/h (125 mph)
Wind Loading
534 N @ 200 km/h (120 lbf @ 125 mph)
Interfaces
(6) RP-SMA Connectors (Weatherproof)
Compatible Radio
Rocket5ac Prism
Mounting
Pole Mount (Kit Included)
ETSI Specification
EN 302 326 DN2
Certifications
CE, FCC, IC
