Wi-Fi capacity requirements in classrooms, offices and medium-sized venues are increasing due to the growth in the number of devices connected via Wi-Fi. Increasing bandwidth requirements for applications and an ever-growing range of IoT devices are putting further strain on already overloaded Wi-Fi networks.

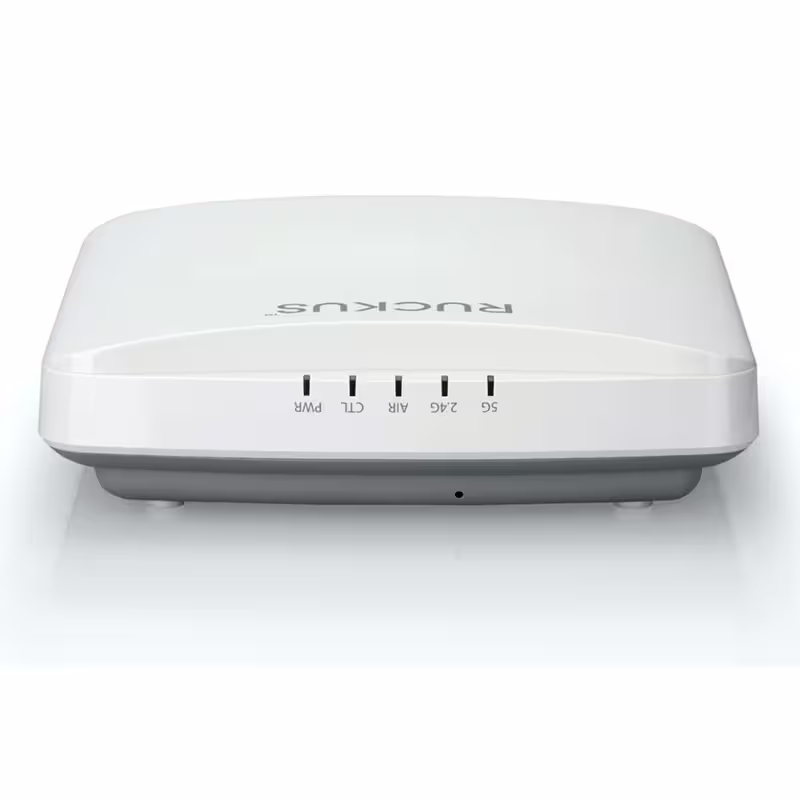

The RUCKUS R550 access point (AP) with the latest Wi-Fi 6 technology (802.11ax) offers the optimum combination of increased capacity, improved coverage and cost in dense environments. The R550 is our mid-range dual-band and dual-radio access point with the largest capacity, supporting four spatial streams (2×2:2 at 2.4 GHz/5 GHz). The R550 supports peak data rates of up to 1774 MBit/s and efficiently manages up to 512 client connections.
In addition to Wi-Fi 6 functions such as OFDMA, MU-MIMO and TWT, the R550 offers numerous patented Ruckus technologies. The R550 is ideal for medium-density deployments such as classrooms in educational institutions, dormitories, corridors and offices.
Enterprise wireless requirements are growing beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies, creating network silos. Companies therefore need a standardized platform to avoid network silos. The RUCKUS AP portfolio is equipped to meet these challenges.
The R550 has built-in IoT frequencies with integrated BLE and Zigbee functions. In addition, the R550 is a convergent access point that enables customers to seamlessly integrate all new wireless technologies via the pluggable IoT module.
In addition to Wi-Fi 6 functions such as OFDMA, MU-MIMO and TWT, the R550 offers numerous patented Ruckus technologies. The R550 is ideal for medium-density deployments such as classrooms in educational institutions, dormitories, corridors and offices.
The R550 Wi-Fi 6 AP incorporates patented technologies that are unique to the RUCKUS Wi-Fi portfolio. –
BeamFlex+ antennas: Greater coverage and optimized throughput thanks to the patented multidirectional antennas and radio patterns –
ChannelFly: Improved throughput through dynamic channel switching to use the least utilized channel
Whether you’re deploying ten or ten thousand APs, the R550 is also easy to manage with RUCKUS’ cloud-based, physical, virtual and controllerless management options.
Advantages
Better mesh
Networking
Reduce expensive cabling and complex mesh configurations by simply checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-repairing mesh networks. More than Wi-Fi Support services beyond Wi-Fi with the Ruckus IoT suite, Cloudpath security and onboarding software, SPoT Wi-Fi localization software and RUCKUS analytics.
Convergent
Access Point
This allows customers to avoid isolated networks and combine Wi-Fi and non-Wi-Fi wireless technologies into a single network by using integrated BLE and Zigbee methods and also integrating future wireless technologies via the USB port.
Supplied
more devices
Supplies more devices
Connect more devices in parallel with four spatial MUMIMO streams and simultaneous 2.4/5 GHz dual-band radios while improving the performance of your devices.
Automating the optimum throughput
The dynamic channel management technology ChannelFly uses machine learning to automatically find the least utilized channels. You always get the highest throughput that the belt supports.
Impressive
Wi-Fi performance
Weaken inference and extend coverage with patented BeamFlex+™ adaptive antenna technology with multiple directional antenna patterns.
More than
Wi-Fi
Support services beyond Wi-Fi with the RUCKUS IoT suite, Cloudpath® security and onboarding software, SPoT Wi-Fi localization software and RUCKUS analytics.
Access point antenna pattern
Thanks to the adaptive BeamFlex+ antennas from RUCKUS, the R550-AP can dynamically
and select from a large number of antenna patterns in real time (up to 64 possible combinations),
to establish the best possible connection to each individual device. The result:
- Better Wi-Fi coverage
- Reduced HF interference
Traditional omnidirectional antennas, such as those found in commercially available access points, oversaturate the environment by unnecessarily emitting RF signals in all directions. The RUCKUS BeamFlex+ adaptive antenna, on the other hand, routes radio signals per device on a packet basis to optimize Wi-Fi coverage and capacity in real time and support high-density device environments. BeamFlex+ can be operated without the need for device feedback, so even devices using outdated standards can benefit.
Note: The outer line represents the composite RF coverage of all possible BeamFlex+ antenna patterns, while the inner line represents a BeamFlex+ antenna pattern within the entire outer line.
