Ubiquiti AF60-XG 60 GHz

1.052,39 € plus. VAT

4+ km, multi-gigabit, 60 GHz bridge with SFP+ support. The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration. Features: – Low-interference, 60 GHz spectrum – High-gain dish antenna – 5 GHz backup radio – 4+ km link range – Supports channel bonding to achieve up to a 6 Gbps throughput rate – Terragraph-certified – 10G SFP+ port – Integrated GPS – Link planning support via ispdesign.ui.com – Simple, Bluetooth-powered setup with the UISP® Mobile app

Möchtest du benachrichtigt werden, wenn dieses Produkt wieder auf Lager ist?

Description
Technical Data

4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

4+ km link range

6 Gbps max. throughput

5 GHz 800+ Mbps weather-resilient backup radio

(1) GbE and (1) 10G SFP+ port

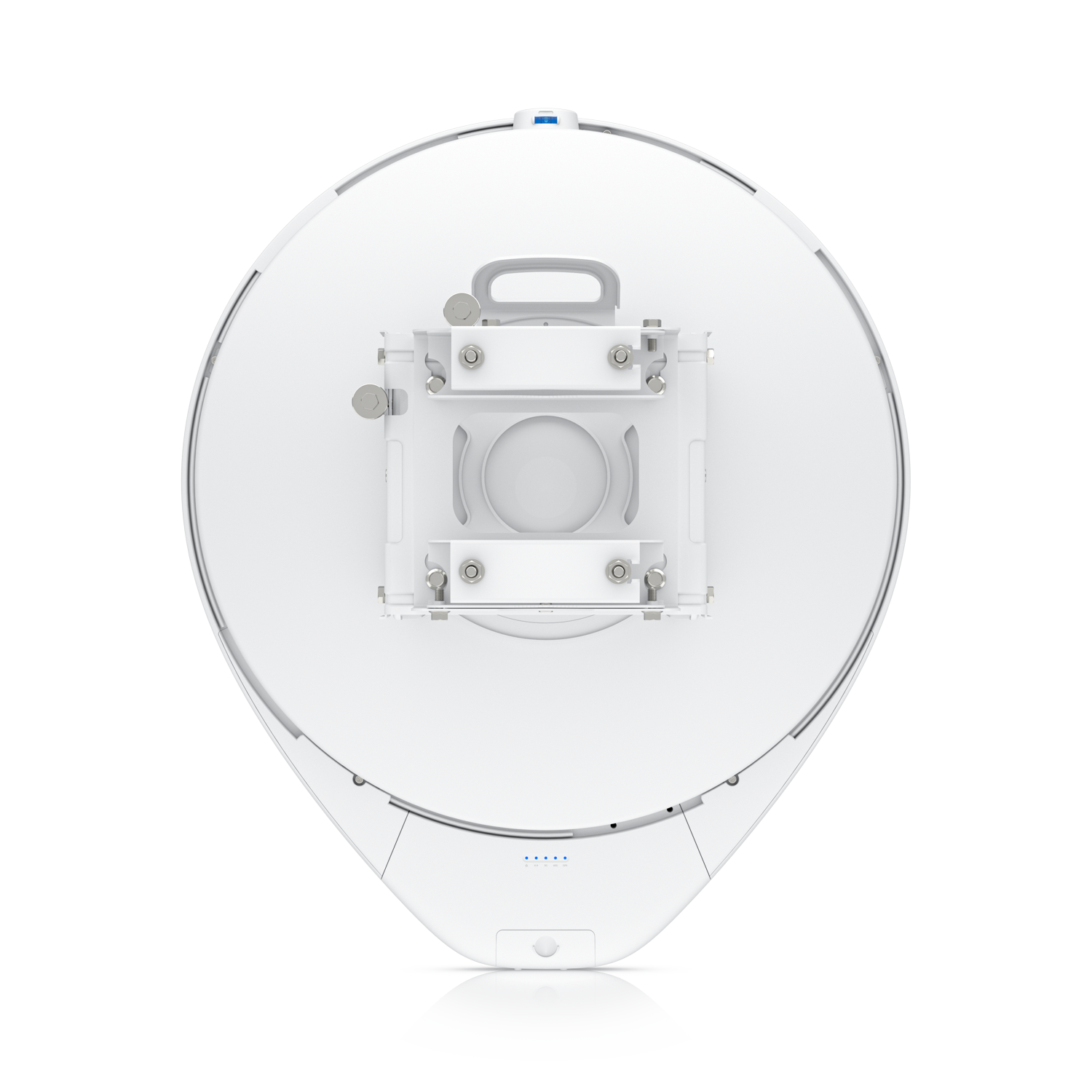

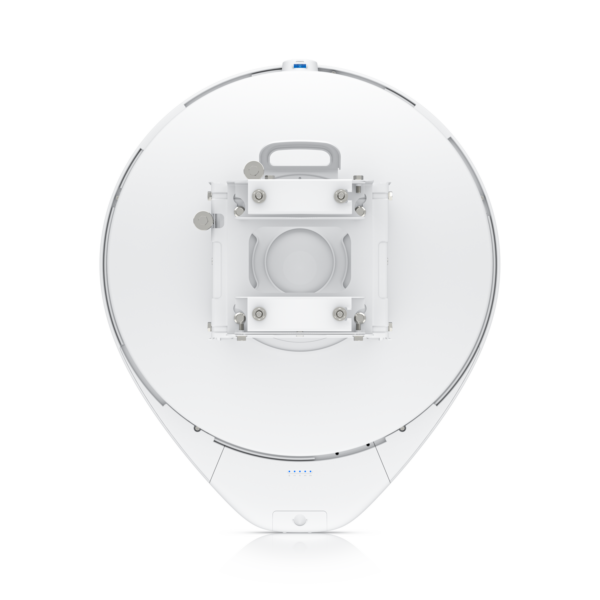

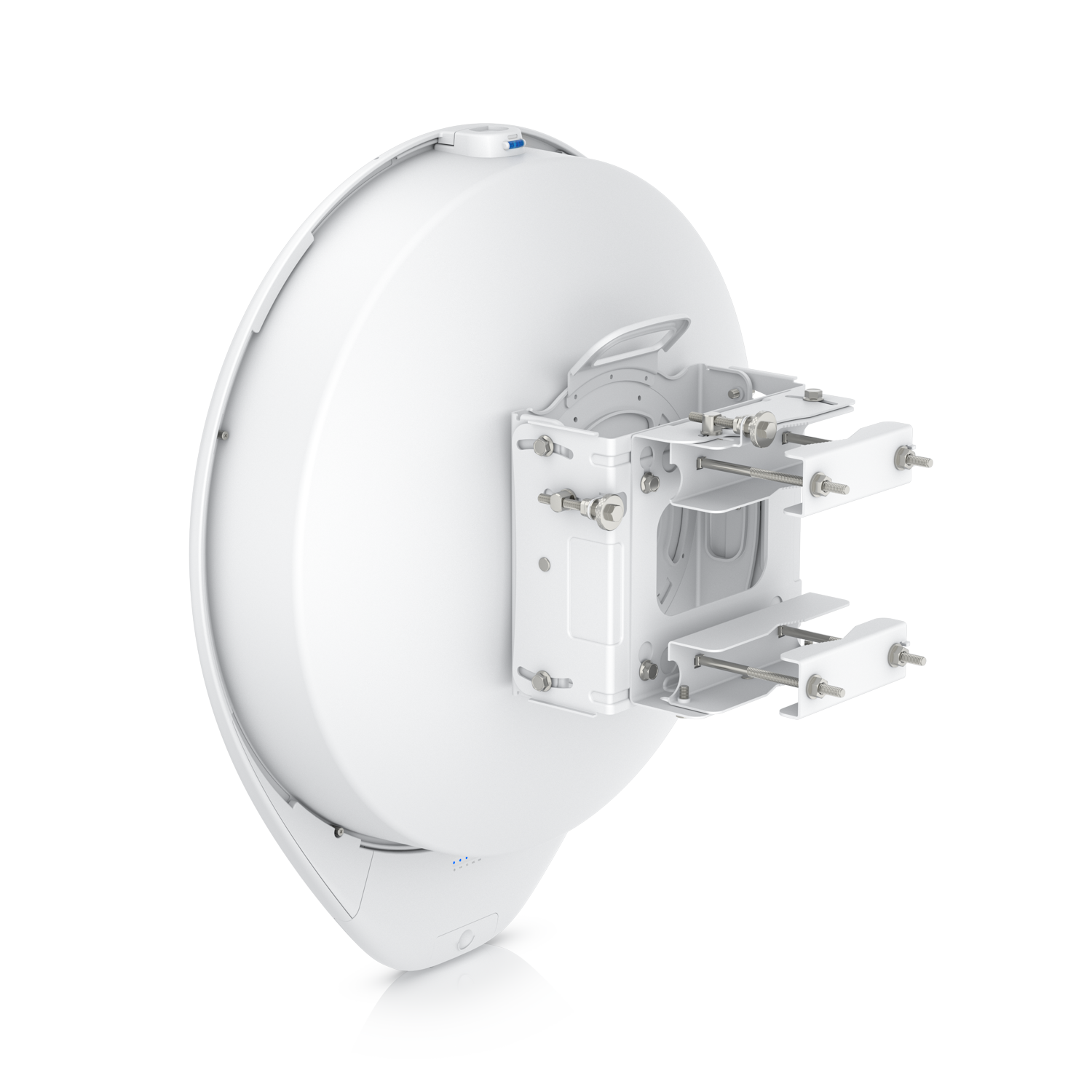

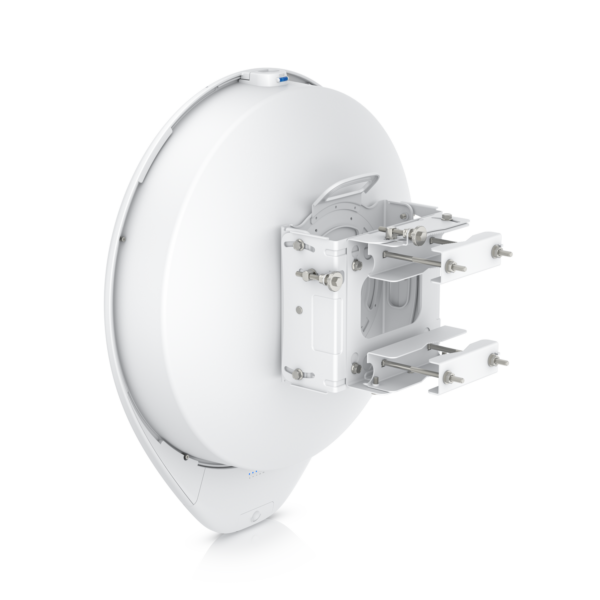

Precision alignment mount

Integrated GPS & Bluetooth

Terragraph Certified

Note. This product should be purchased in pairs in order to form links.

Technical Specifications

Mechanical
Dimensions
779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)
Weight
Without mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)
Enclosure materials
UV stabilized polycarbonate, steel
Mount material
Galvanized steel
Mounting
Precision alignment kit (included)
Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″)
Wind loading
422 N at 200 km/h (94.86 lbf at 125 mph)
Hardware
Processor
Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory
2 GB DDR4
Networking interface
(1) GbE RJ45 port
(1) 1/10G SFP+ port
Max. power consumption
31.2W
Power method
Passive PoE 4-pairs (1, 2+;
