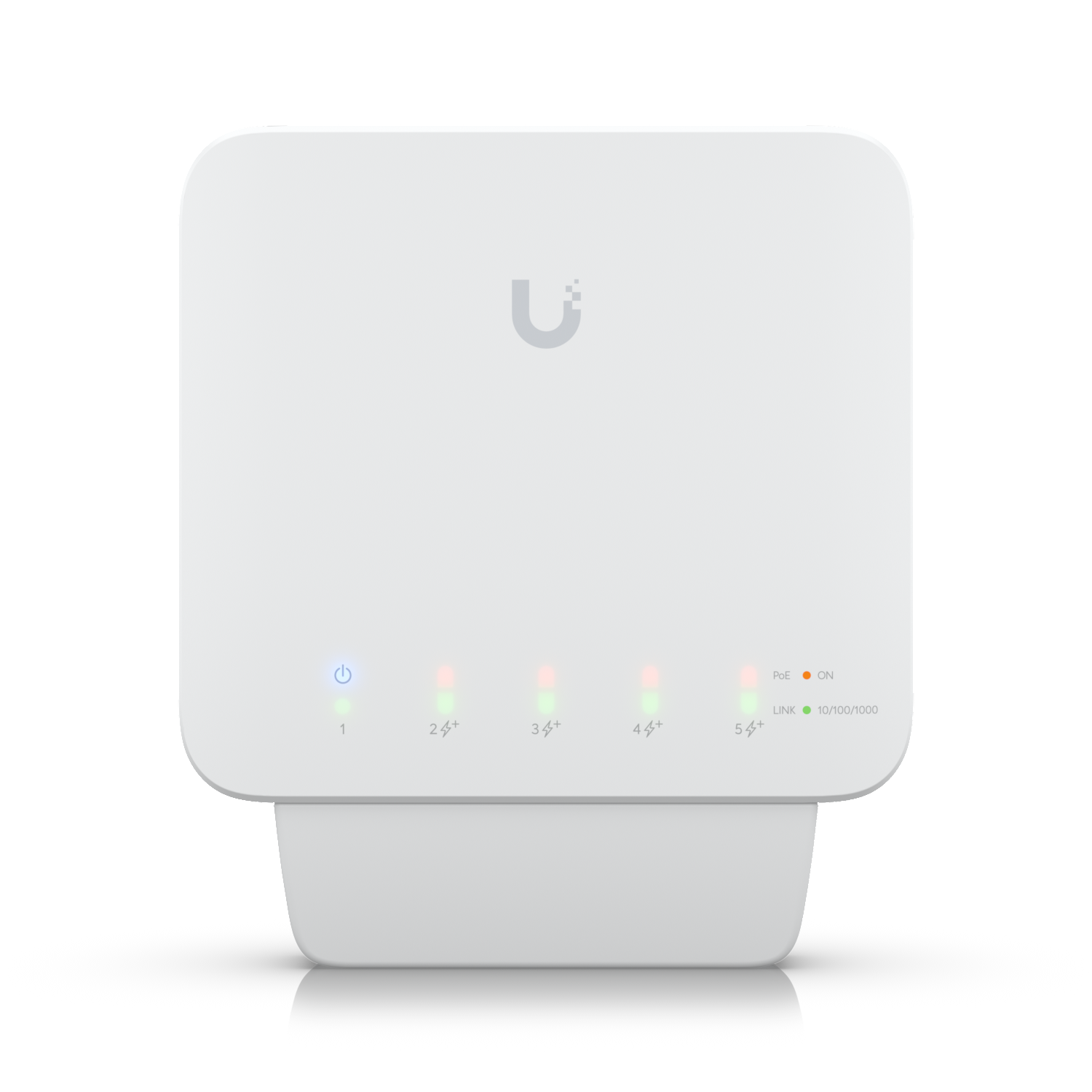

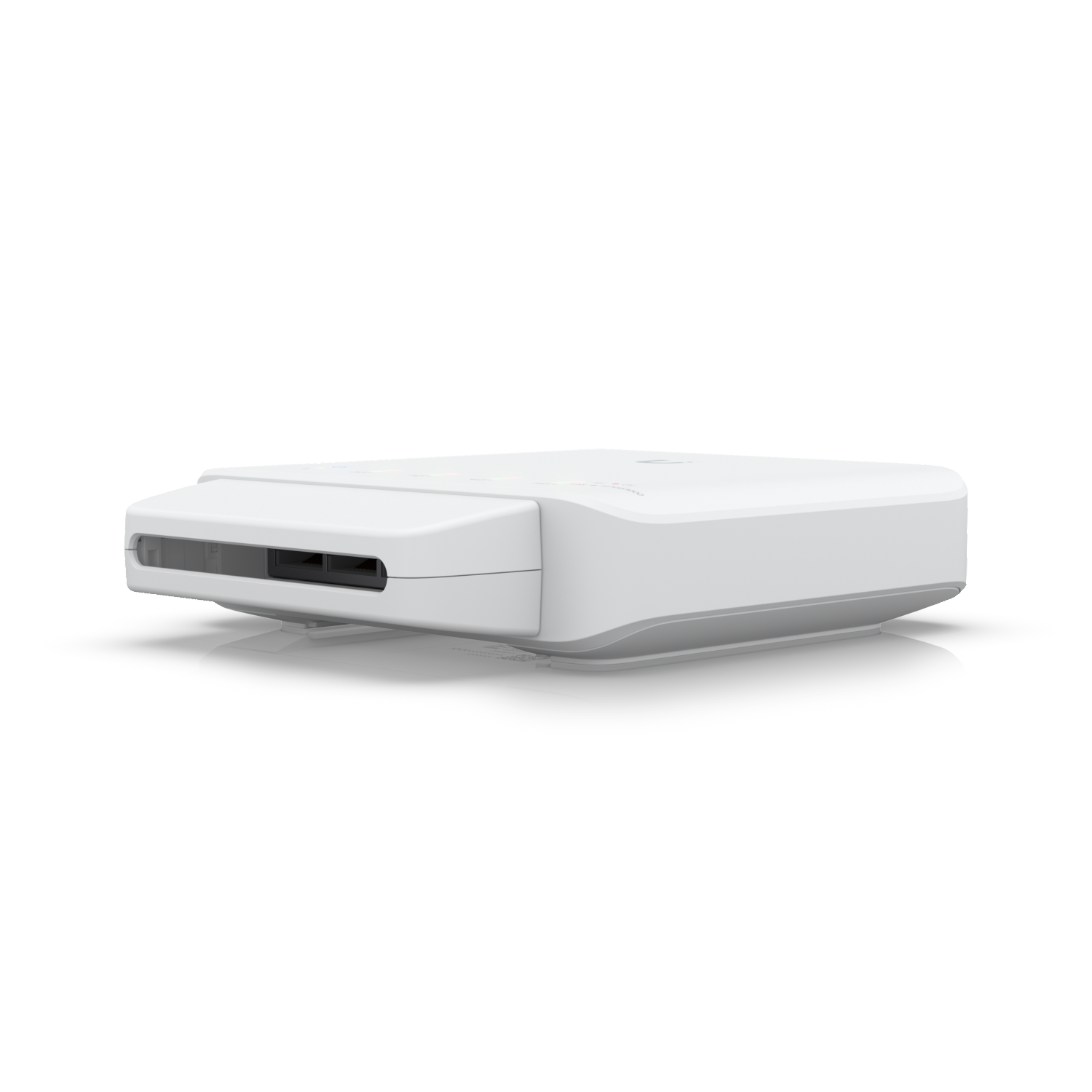

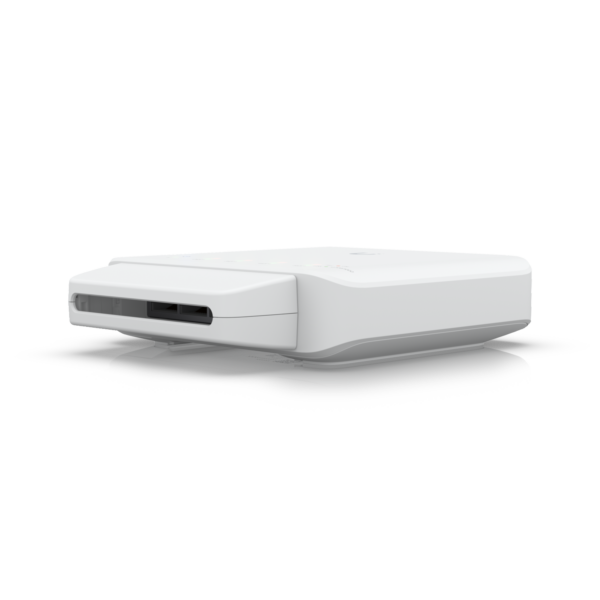

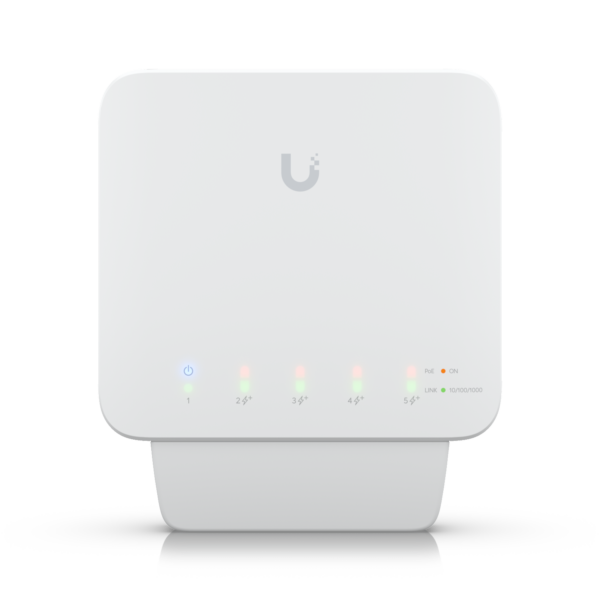

Ubiquiti UniFi Switch Flex / Input 1x POE++ / Output 4x POE+ / up to15W per port* / USW-Flex

Customized support

+ Installation service

+ Managed Services

Ubiquiti UniFi Switch Flex / Input 1x POE++ / Output 4x POE+ / up to15W per port* / USW-Flex

98,06 € plus. VAT

? Flexible 5-port Layer 2 PoE switch for indoor and outdoor use that can be operated with PoE++ – (4) GbE PoE+ ports – (1) GbE PoE++ input port for power ? 46 W PoE availability* PoE++ input ? 20 W PoE availability* PoE+ input ? 8 W PoE availability* PoE input – Indoor Outdoor *When powered by a PoE++ switch or a 60 W PoE adapter (sold separately). ?

Availability: 1 in stock

Description
Technical Data

Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++

(4) GbE PoE+ ports

(1) GbE PoE++ input port for power

– 46W PoE availability* PoE++ input
– 20W PoE availability* PoE+ input
– 8W PoE availability* PoE input

Indoor/Outdoor

*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).

Technical Specifications

Mechanical
Dimensions
122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1″)
Weight
230 g (8.11 oz)
Hardware
Management interface
Ethernet In-Band
Networking interface
(5) GbE RJ45 ports
PoE interface
(4) PoE+ (pins 1, 2+; 3, 6-)
Total non-blocking throughput
5 Gbps
Power method
PoE++
Power supply
PoE/PoE+ (pins 1, 2+; 3, 6-)
PoE++ (pins 1, 2+; 3, 6- and 4, 5+; 7, 😎
50V/60W PoE adapter (Not included)
Supported voltage range
PoE: 44-57V DC
PoE+/PoE++: 50-57V DC
Max. power consumption
5W (Excluding PoE output)
Total available PoE
46W**When powere
