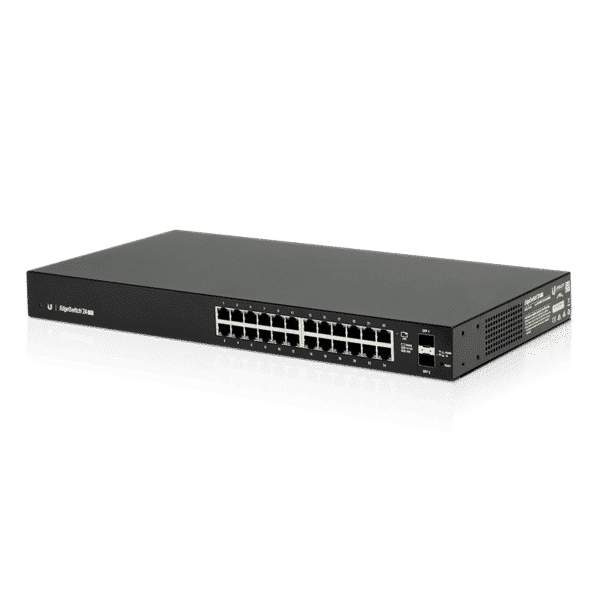

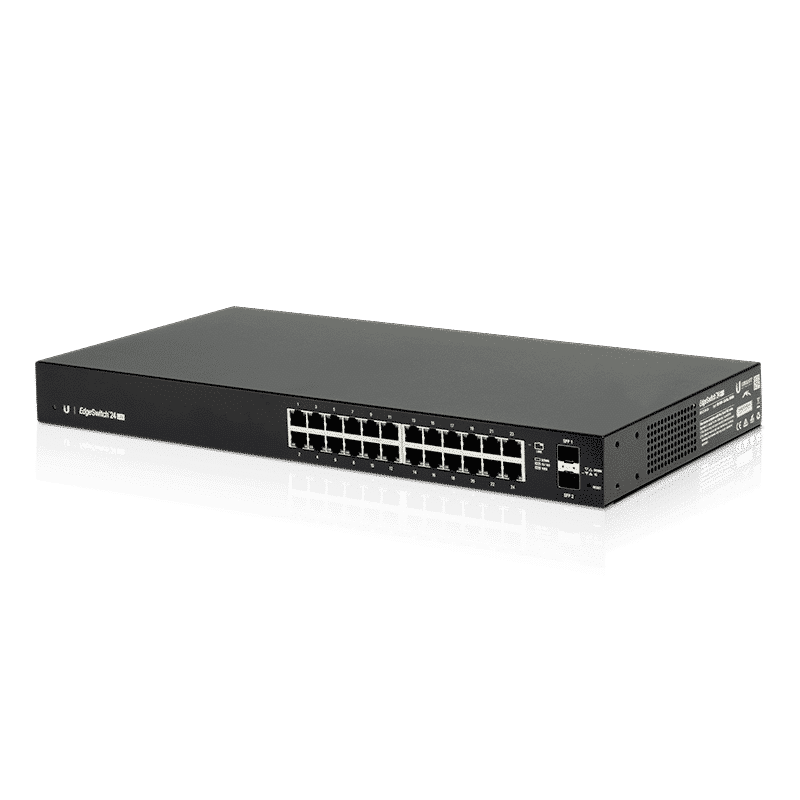

Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 25W power supply.
(24) GbE RJ45 ports
(2) SFP ports
Wall or rack-mountable
Technical Specifications
Mechanical
Dimensions
443 x 43 x 221 mm (17.44 x 1.69 x 8.7")
Weight
Without Rack-Mount Brackets: 2.51 kg (5.53 lb)
With Rack-Mount Brackets: 2.6 kg (5.7 lb)
Hardware
Networking Interfaces
(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput
26 Gbps
Switching Capacity
52 Gbps
Forwarding Rate
38.69 Mpps
Max. AC Power Consumption
25W
Power Method
AC
DC
100-240VAC/50-60 Hz, Universal Input
DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply
AC/DC, Internal, 25W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP+/SFP Data Ports
N/A
Speed/Link/Activity
Speed/Link/Activity
Rackm
